Maintenance and Troubleshooting

This section describes regular maintenance tasks and provides troubleshooting information. It includes the following topics:

• “Regular Maintenance”

• “Firmware Update”

• “Firmware Update”

• “Troubleshooting”

  For information about obtaining product assistance, see “Contacting Technical Support”.

Regular Maintenance

Perform the following maintenance tasks periodically:

1. Check that the camera is properly secured.
2. Check that all cables that run to the camera are properly connected, are undamaged, and are properly dressed to prevent possible snags.
3. Check that the cooling fan on the bottom of the camera is unobstructed. Use a vacuum cleaner to remove dust from the fan area. Do NOT use any liquids to clean the camera.

Firmware Update

Perform the following firmware update steps when new upgrades are available from: https://www.rossvideo.com/support/product-documentation/ptz-documentation/.

To access the web interface:

1. Enter the IP address of the camera into the address bar of your web browser.

2. Enter a valid User Name and Password for a user with Administrator authorization.

   For more information, refer to “To Access the Web Interface:”.

To check current firmware version:

1. Select About the menu options in the Web Interface.

2. Locate the Firmware Version field on the About page.

   After you check the firmware version number on the camera, compare it to the firmware version numbers listed in the Release Notes, which are available as a PDF file in the firmware update package. The Release Notes are also available for download at https://www.rossvideo.com/support/product-documentation/ptz-documentation/.

   note

   If the camera already has the latest firmware version, no update is required.

To upgrade the firmware version:

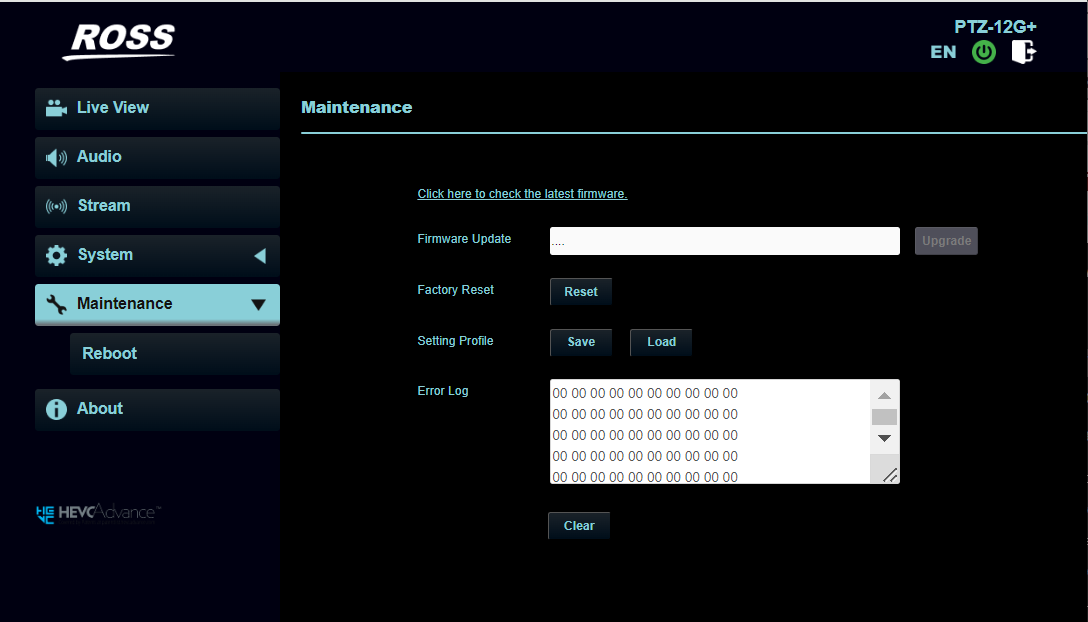

1. Select Maintenance from menu options in the Web Interface.

2. Click in the Firmware Upgrade text field to open a file browser and navigate to the .bin file for the new firmware.

   The .bin file is available in the firmware upgrade package at https://www.rossvideo.com/support/product-documentation/ptz-documentation/.



   Figure 1

3. Select the Upgrade button.

   note

   The firmware upgrade takes approximately 2 minutes to complete. Do not remove power during this time.

Once the upgrade is complete:

important

Do not power cycle your camera until the upgrade finishes.

1. Disconnect the power cable from the camera.

2. Wait 60 seconds, then reconnect the camera’s power.

3. Log in to the Web Interface with your account credentials.

   note

   Network settings and user credentials are unaffected by the firmware upgrade process.

   tip

   Refer to the About page to confirm your firmware version has upgraded.

FPGA Firmware Upgrade

The FPGA (Field-Programmable Gate Array) firmware upgrade updates the chip that manages hardware functions, such as video processing and synchronization. This process is separate from general firmware updates and is performed to address specific hardware improvements or fixes.

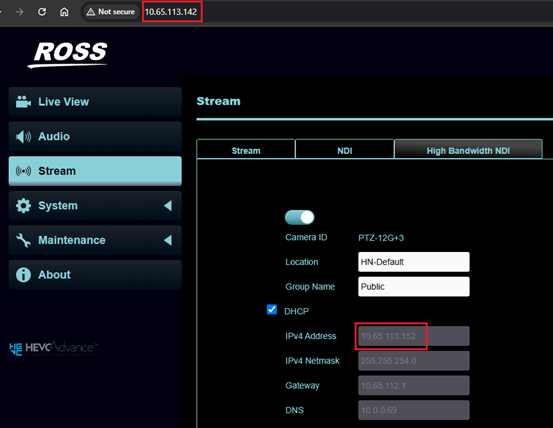

1. Confirm the Master and high-bandwidth NDI networks are in the same subnet.



   Figure 2

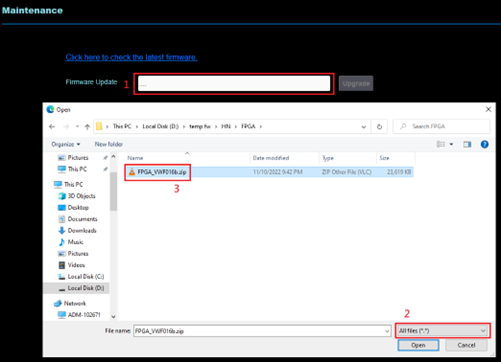

2. Go to the Maintenance page and select the Firmware Update textbox.

3. Select the All files (*.*)file type and the VWFxxxx.zip file.



   Figure 3

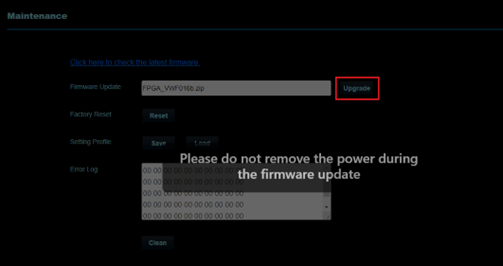

4. Select Upgrade and wait for 10 minutes.



   Figure 4

5. After upgrading FPGA firmware, the camera restarts.

   important

   If the FPGA Firmware upgrade fails, complete the following:

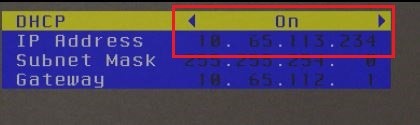

   Set the IP address to use DHCP .

   Use the remote control and on-screen display to find the assigned IP address .

   Access the device through the web UI using the newly assigned IP address .

   Upgrade the FPGA firmware following the steps in this section.

   Manually set the IP address after the upgrade is complete.



   Figure 5

Troubleshooting

This section describes problems you may encounter, and provides possible solutions.

Table 1

Problem	Possible Solution
Boot without power signal	Make sure you have plugged in the power cord. When using a PoE connection, ensure that the power supply supports PoE+ / PoE++ hubs. The camera requires PoE++ (IEEE802.3bt).
There is no video image output.	Check the power supply or PoE supply functions. Confirm the output signals are in streaming output. Confirm whether the camera resolution can be used together with the monitor equipment. If 4k output, confirm the monitor equipment supports 4K output. Replace the cables and make sure they are not faulty. Transport of 4K video requires 12G 4K UHD rated video cables.
RS-232 cannot be controlled	Confirm the connection is correct (RS-232 In/ Out) Please make sure the Baud rate setting is the same as the control equipment
Unable to connect to camera after changing network settings (IP address, gateway, netmask)	Power cycle the camera: Disconnect camera power, wait 20 seconds, and then reconnect power. Wait until camera initializes, and then try connecting to it again.
Whether the Internet can be used for operation	Please refer to “Web Interface Features” for the Internet usage
ONVIF software cannot locate the machine	Unable to connect to Camera after change IP’s 2 slots above In the web interface, use only English letters and numbers for Settings > Video > Camera_ID and Settings > Video > Location. Using special characters and/or pressing the space bar will cause the ONVIF software to be unable to locate the machine. This applies only with NDI disabled.
Tally lamp is not working when applying VISCA setting	Ensure that the Tally Lamp function is enabled. Do one of the following to access the Tally Lamp on/off setting: Using the On-Screen Menu, (remote control unit), go to System > Tally Lamp. Using the web interface, go to Settings > Camera > Tally Lamp.
The camera does not save the relevant parameters (PTZ, AWB, etc) after reboot	Check that Initial Position setting is set to Last MEM. Do one of the following to access the Initial Position setting: Using the On-Screen Menu, (remote control unit), go to System > Initial Position. Using the web interface, go to Settings > Camera > Pan Tilt Zoom > Initial Position.
Forgot password for web interface and cannot log in	Hard Reset A Hard Reset enables password resetting. WARNING: This process resets all camera, network, and login credential settings, restoring defaults. To perform a Hard Reset, complete a power cycle by disconnecting and reconnecting the camera’s power, then complete the following: Using the remote, press the following buttons in this precise sequence: + 886464 > Enter. Note: Use the On Screen Display to turn Prompt On when selecting between numbers. When entering the numerical sequence, wait until the screen prompts OK before entering the next number. Settings are applied as follows: Ethernet: DHCP is turned On. IP address is set to 192.168.100.100. Tip: After reset, use the remote control unit to turn DHCP off or to set the IP address. User Names and Passwords for the web interface revert to a single default user profile: User Name: admin Password: 9999 Using the web interface, select Add/Edit Users > Edit > enter the New Password > Confirm Password > Apply to assign a new password. Note: Symbols are not recognized in passwords. For further assistance, refer to “Contacting Technical Support”.
Unable to add camera in DashBoard	Ensure that the control protocol on the camera is set to VISCA. There are two ways to access the Protocol setting: In the web interface, the Protocol setting is at System > Control. For more information, refer to “System: Control”. In the On-Screen Display menu, the Protocol setting is at System > Protocol. For more information, refer to “On-Screen Display Menu Settings”.
