To Set up a Network/Dante® Audio Input (AoIP)

Network audio inputs come into the system through the AoIP Primary and Secondary ports on the rear of the frame.

Note:

The Dante® software license must be installed to support Dante® inputs.

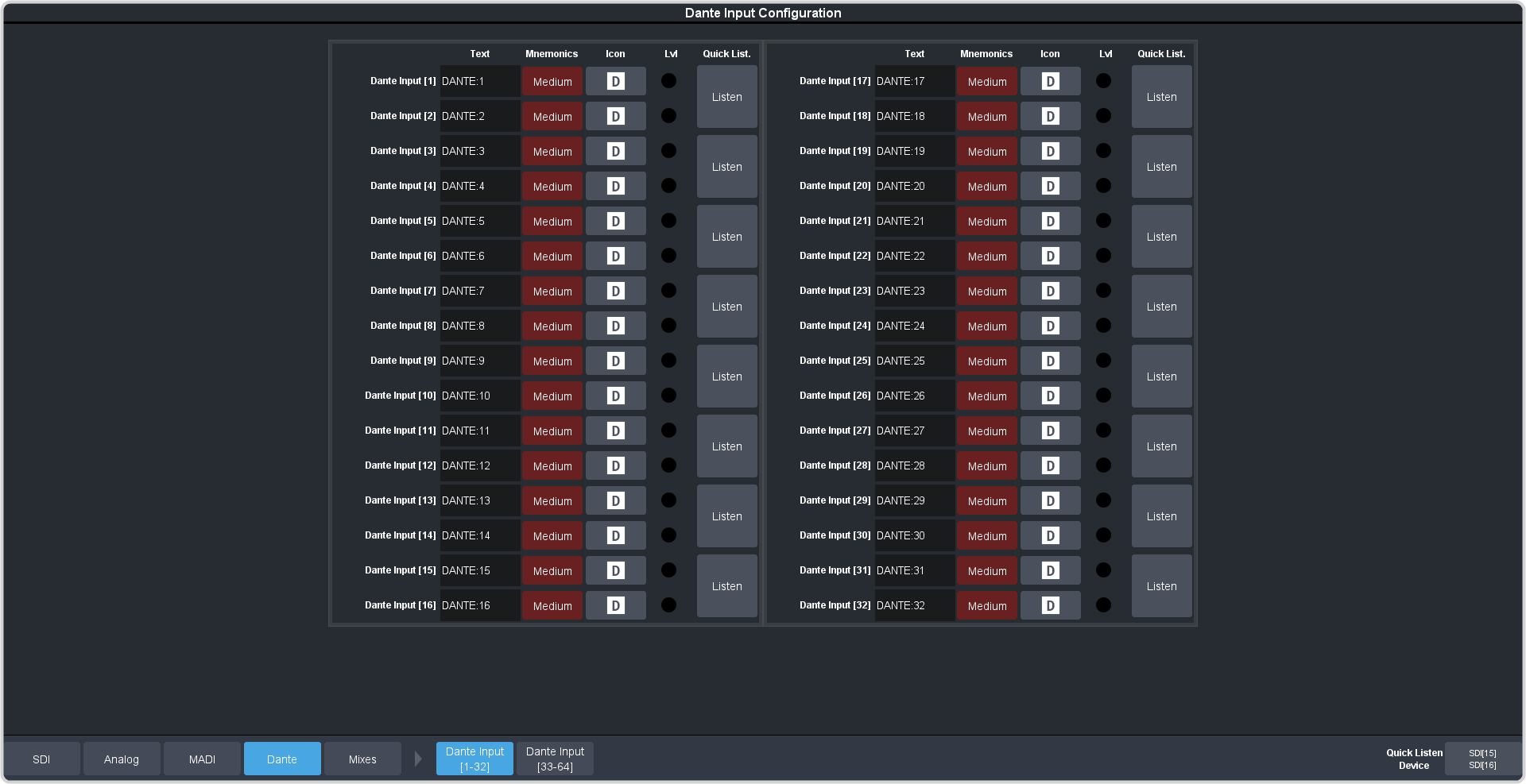

Click Navigation Menu > Configuration > Audio Inputs > Dante

The inputs are listed along the side and the various settings are listed across the top. Click the setting button for the source you want to set up to view the available settings.

Tip:

Click the Dante Input [1-32] or Dante Input [33-64] button to view all sources.


Setting	Description
Text	Apply a custom name to the source. Enter a new name for each input you want to identify differently. The name is used to identify the input on the mixer mnemonics as well as on menus.
Mnemonic	Select a custom text size and color, and background color for the source mnemonic.
Icon	Select a custom icon for the source mnemonic.
Lvl	Indicates an audio signal has been detected on the channel.
Listen	Press and hold the Listen button to have the channel pair sent to selected Quick Listen Device.
