To View the Hardware Status

View the current status of the power supplies, IO Boards, reference, and fans in the frame.

Tap Hardware.

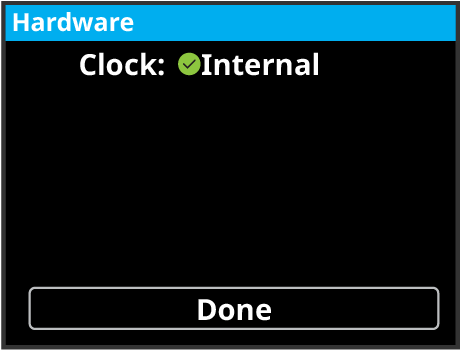

The menu lists the hardware and their status. If an element is showing a problem, you can go the Status page on DashBoard for more information.
Tap Done.
