Ultritouch

The 2RU rack mountable Ultritouch adaptable system control panel allows you to control some aspects of system operation using a DashBoard interface.

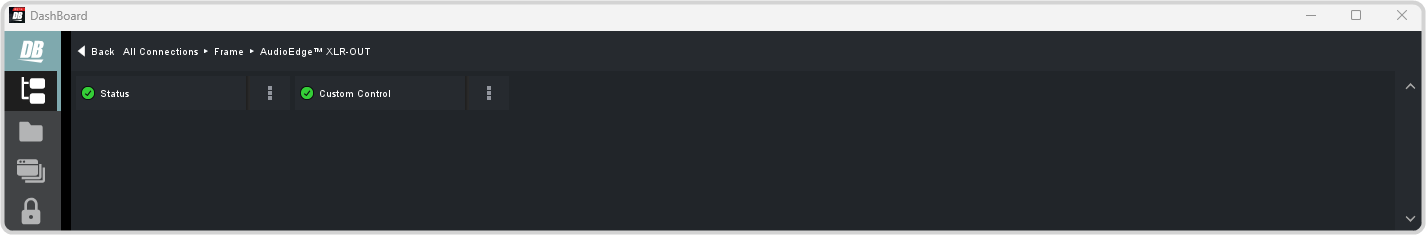

The DashBoard interface on Ultritouch provides status and custom control tabs. You must connect to the system from Ultritouch to be able to control the system functions. Refer to the Ultritouch documentation for information on navigating the Ultritouch menu and manually connecting to a device.

Once you are connected to the system, tap the Connected Devices button and select the system you want to control from the list and tap Carbonite. The available tabs for the system are listed. Tap one of the available tabs to open it.

Status

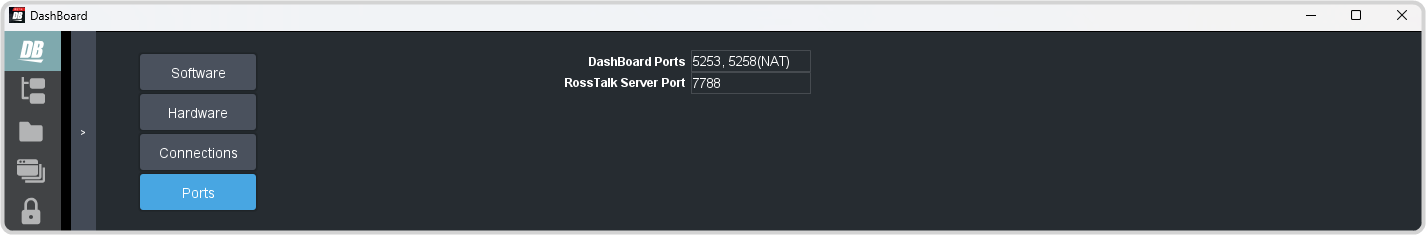

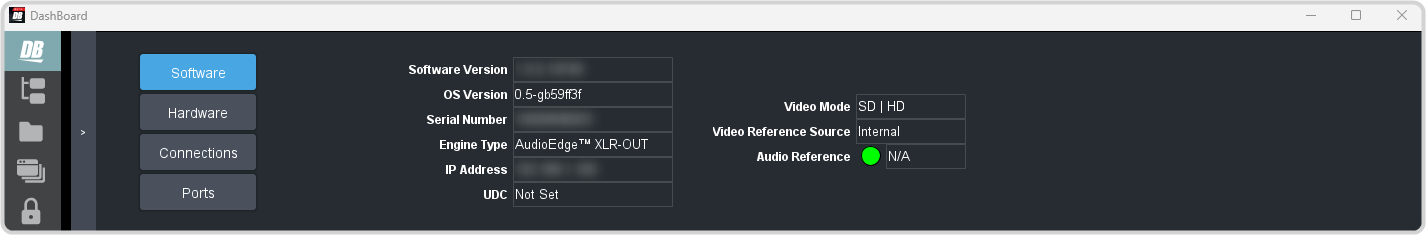

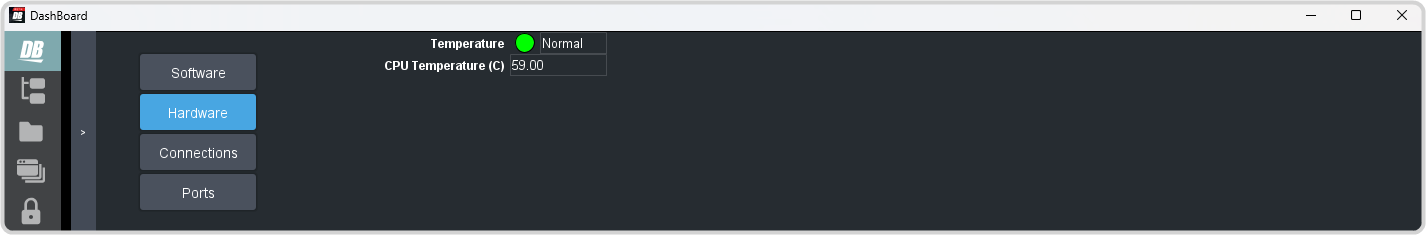

This tab allows you to view status information for various system components. These tabs are the same as the Status tab from a DashBoard computer.

Custom Control

This tab allows you to run custom controls on the system. This tab is this same as the Custom Control ShotBox tab from a DashBoard computer. You cannot edit a custom control from this tab.

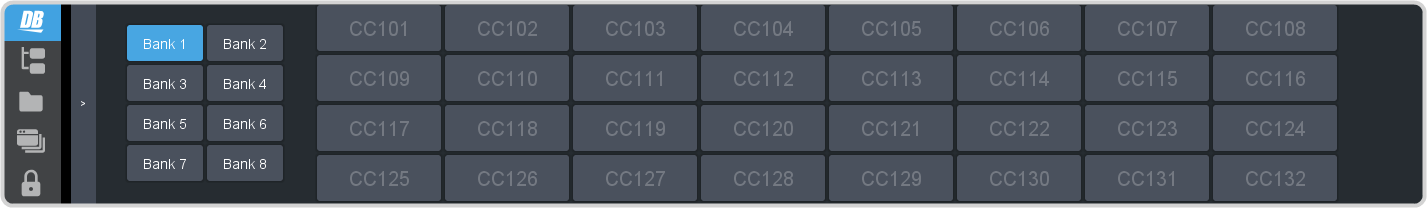

Tap the bank for the custom control you want to run.
Tap the custom control on the selected bank that you want to run.
