In-Desk Mounting

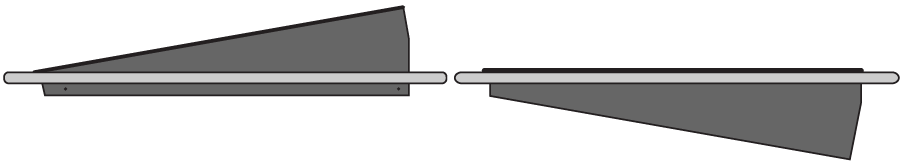

The Acuity® control panel can be mounted in a desk either on an angle, or flat.

To Mount the Control Panel on an Angle

The Acuity® control panel ships with the desk supports installed to allow it to be installed in a desk and sit at the same angle as it would be sitting on the desk.

Note: Contact Ross Video technical support for scale drawing of the your control panel to allow for the most precise measurements for cutting the hole in your desk.
Note: The desk must be between 0.65" and 1.7" thick to properly mount and secure the control panel.
  1. Slide the control panel into the hole in the desk.
    Note: Ensure there is enough space at the back of the control panel for the cables.

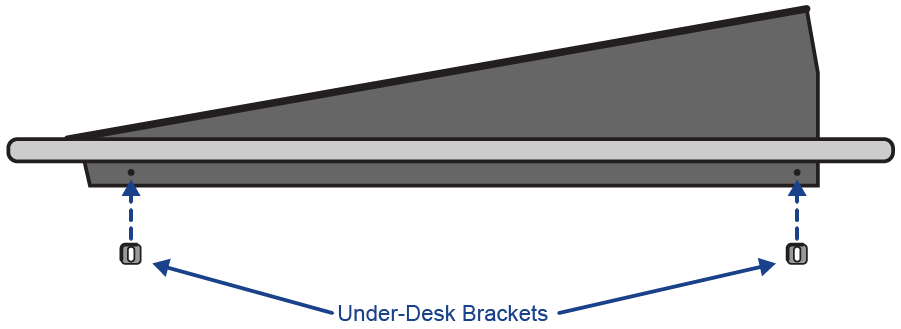

  2. Install the under-desk brackets (4800FR-613-01) to secure the control panel in the desk.


To Mount the Control Panel Flat

Remove the desk supports that come installed on the Acuity® control panel to allow it to be installed in a desk so it sits flat.

Note: Contact Ross Video technical support for scale drawing of the your control panel to allow for the most precise measurements for cutting the hole in your desk.
Note: The desk must be between 0.65" and 1.7" thick to properly mount and secure the control panel.

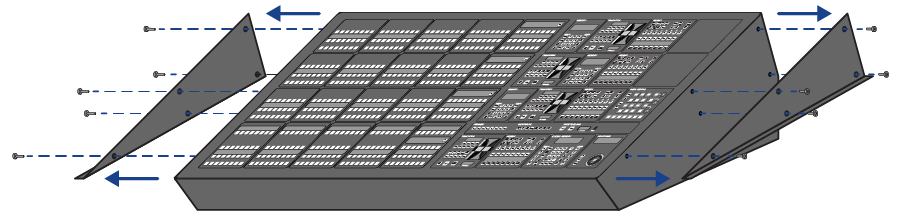

  1. Remove the desk supports from either side of the control panel.


  2. Slide the control panel into the hole in the desk.
    Note: Ensure there is enough space at the back of the control panel for the cables.

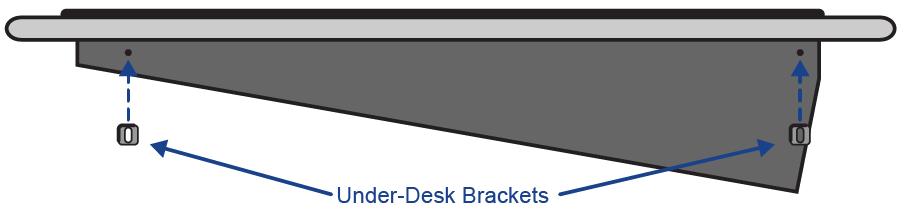

  3. Install the under-desk brackets (4800FR-613-01) to secure the control panel in the desk.
