To Delete A Media Item

Delete a media item. You can only delete a single item at a time and you cannot delete the internal sample items.

Click Navigation Menu > Live Assist > Media > Media-Store
Click the Folder list and navigate to the folder containing the media item you want to delete and select the media item that you want to delete.

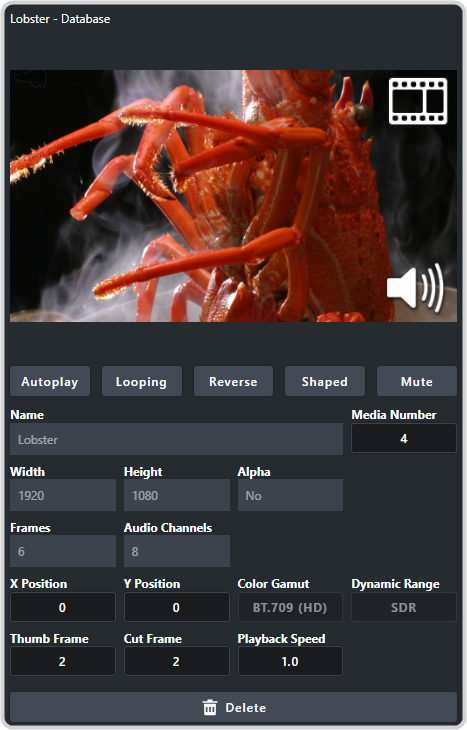

In the Item Details area, scroll to the bottom.
Click Delete File and OK.
