Media-Store Overview

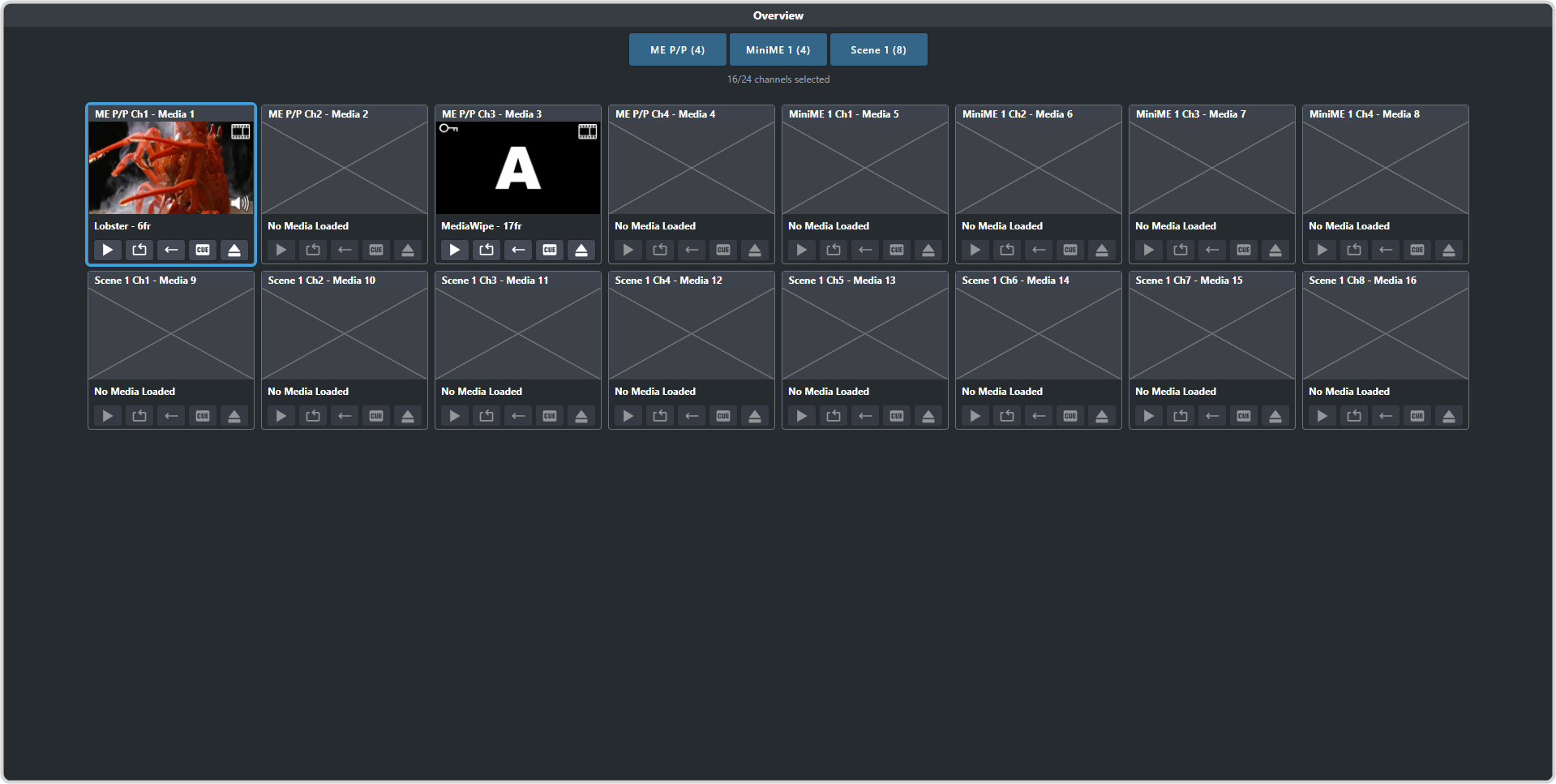

The Overview menu allows you to view all the Media-Store channels across all SDPE blades in the switcher. All the basic commands are available for each channel, but you cannot load a media item into a channel from this menu.

Click Navigation Menu > Live Assist > Media > Overview

Tip: Select, or deselect, specific SDPEblades at the top to filter which Media-Store you are viewing.

The number of Media-Store channels that are available depend on the role the SDPE blade has been assigned and the video mode the switcher is operating in.

Table 1. Media-Store Channels per SDPE Blade
SDPE Role	HD	UHDTV1
MaxME	4	4
MaxMini	4	4
MaxScene	8	4
