To Apply Rotation to the 3D DVE Key

Apply a rotation to the key in any direction.

Click Navigation Menu > Live Assist > MEs and select the ME and key that you want to set up.

Tip: You can use the same procedure for a MiniME™.

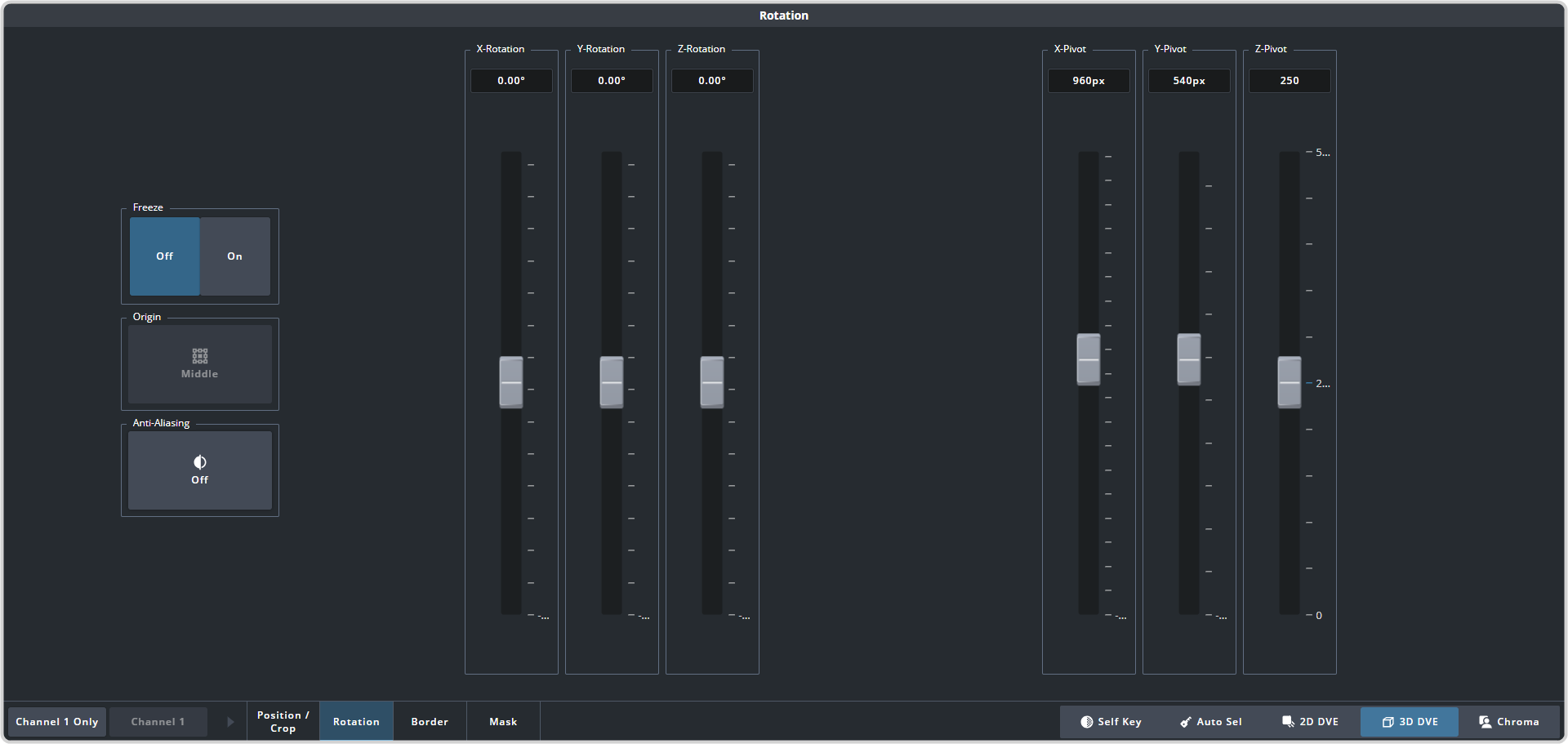

Click 3D DVE > Rotation
Use the X-Pivot, Y-Pivot, and Z-Pivot sliders to adjust the location of the pivot point used for rotation.
- X-Pivot — move the pivot point from side to side.
- Y-Pivot — move the pivot point up or down.
- Z-Pivot — move the pivot point towards or away from you.

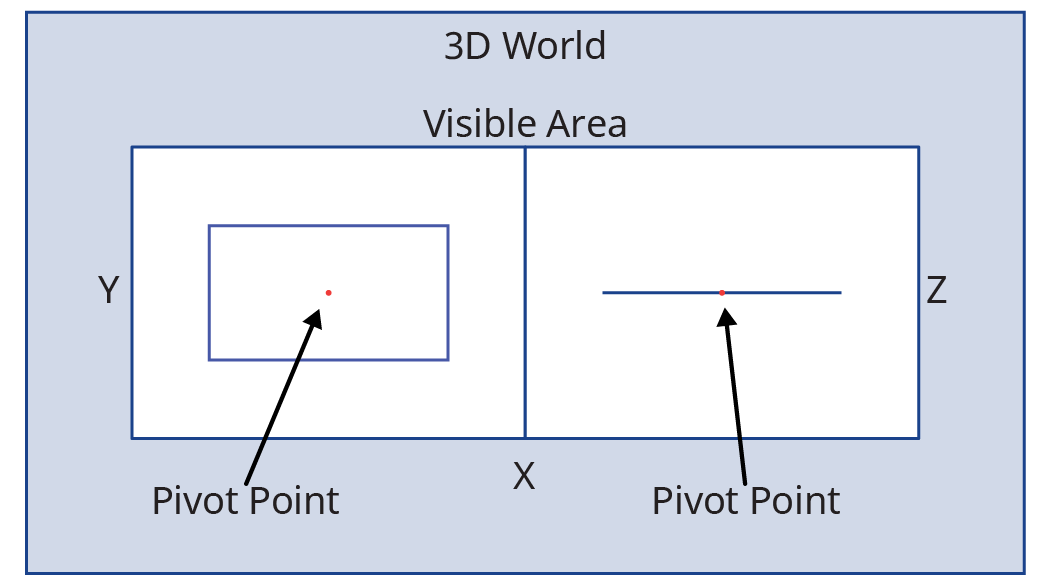

The pivot point in is the point in 3D space where the key rotates around when a rotation is applied. The pivot point is unique to for each key.

Use the X-Rotation, Y-Rotation, and Z-Rotation sliders to rotation of the key around the pivot point.

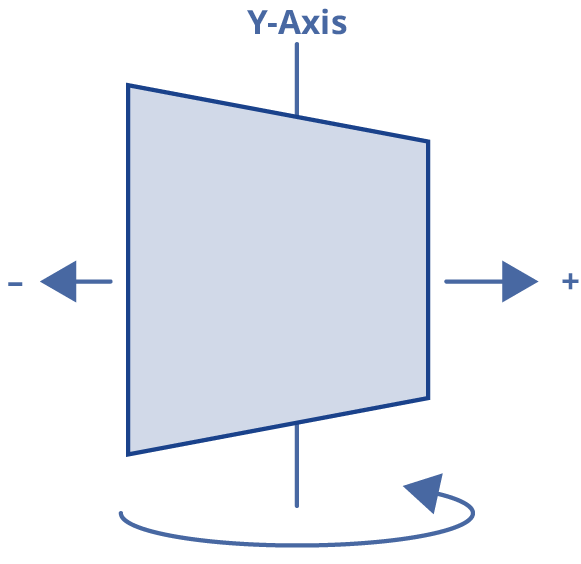

X-Rotation	Rotate the key from side to side around the Y-axis.

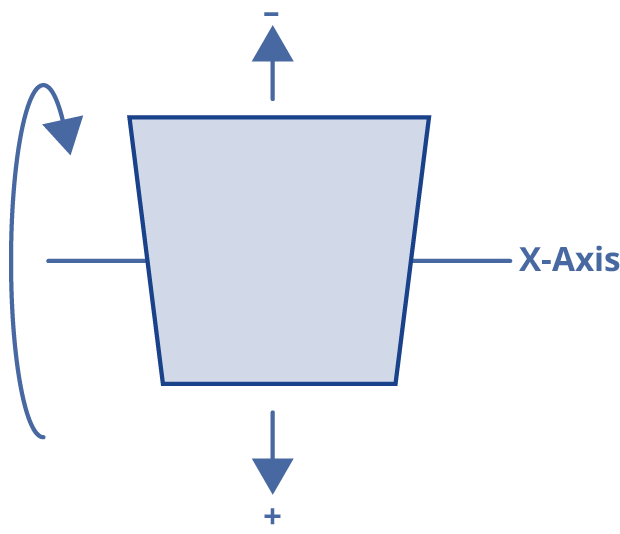

Y-Rotation	Rotate the key up or down around the X-axis.

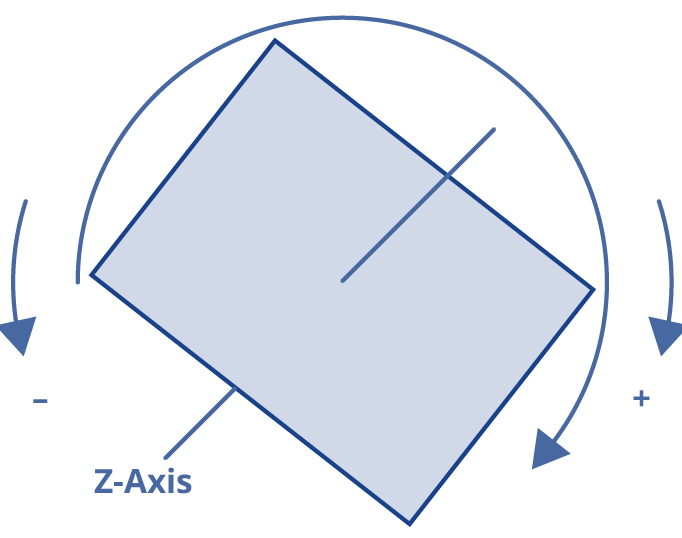

Z-Rotation	Rotate the key clockwise, or counter-clockwise around the Z-axis.

Tip: If you rotate the key in the X or Y plane past 90 degrees in either direction, the back-side of the key is visible. This is the reverse image of the front-side.
