Copying and Pasting Custom Controls

The contents, or events, of a custom control can be copied from one custom control and pasted to another. Along with the events, the name and mnemonic settings are also copied.

To Copy and Paste a Custom Control

Copy the contents of a custom control from one button to another.

Click Navigation Menu > Custom Control > Editor.
Click Bank X to select the bank that the custom control you want to copy is on.
Click the custom control that you want to copy.
Click Copy.

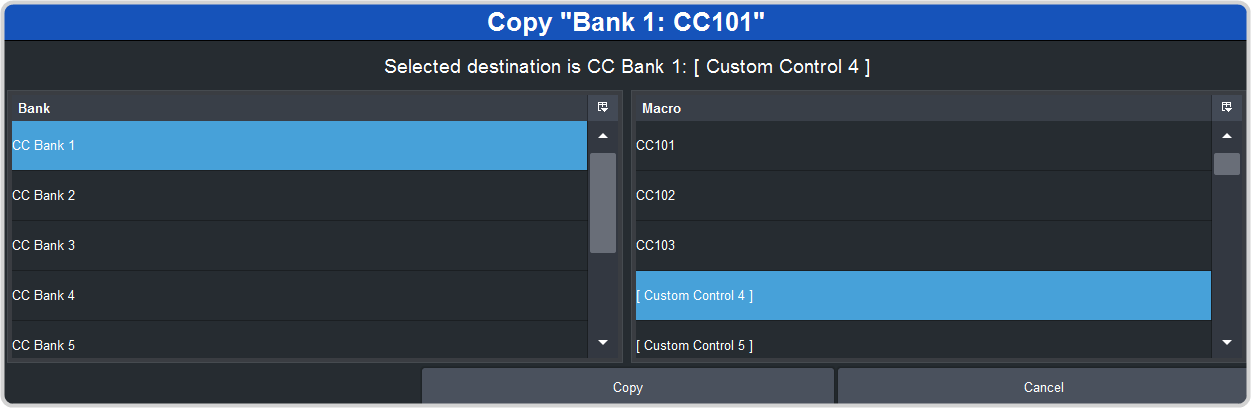

Select the custom control that you want to paste into.
Click Copy.
