MultiPanel
Each frame supports up to 3 independent control connections (Main, Satellite 1, Satellite 2). Each connection can be from a control panel, DashBoard, or a combination of the two. Add devices on the same control connection mirror each other.
To Set Up MultiPanel Permissions

Setup
Reference and video I/O setup, networking, and signalling setup.
- Network Setup
  The switcher runs as a service on the PC.
- System Access
  Enable or disable system access and control methods such as FTP.
- Video Mode and Latency
  The switcher can operate in any of the supported video formats (modes). Latency can be used to adjust system performance.
- Video Inputs
  External video sources come into the switcher directly through an NDI® stream, and internal sources are generated internally from the switcher.
- Video Outputs
  Any source in the switcher can be routed to one of the outputs and each output can be assigned to an NDI® stream.
- MultiViewer
  The MultiViewer allows you to view multiple video sources from a single output. Video inputs or outputs on the switcher, including Program and Preview, can be assigned to any box on the MultiViewer.
- Personality
  Personality settings allow you to configure how you interact with the control panel and switcher, as well as how the buttons on the control panel appear. All of these settings are stored in the Personality register.
- ViewControl
  The ViewControl interface through DashBoard allows you to coordinate the control over the Carbonite switcher and other devices through custom controls and transitions.
- MultiPanel
  Each frame supports up to 3 independent control connections (Main, Satellite 1, Satellite 2). Each connection can be from a control panel, DashBoard, or a combination of the two. Add devices on the same control connection mirror each other.
  - To Set Up MultiPanel Permissions
- MIDI Controller
  The MIDI controller is used to control the RAVE audio mixer. The controller connects to the switcher through DashBoard.

To Set Up MultiPanel Permissions

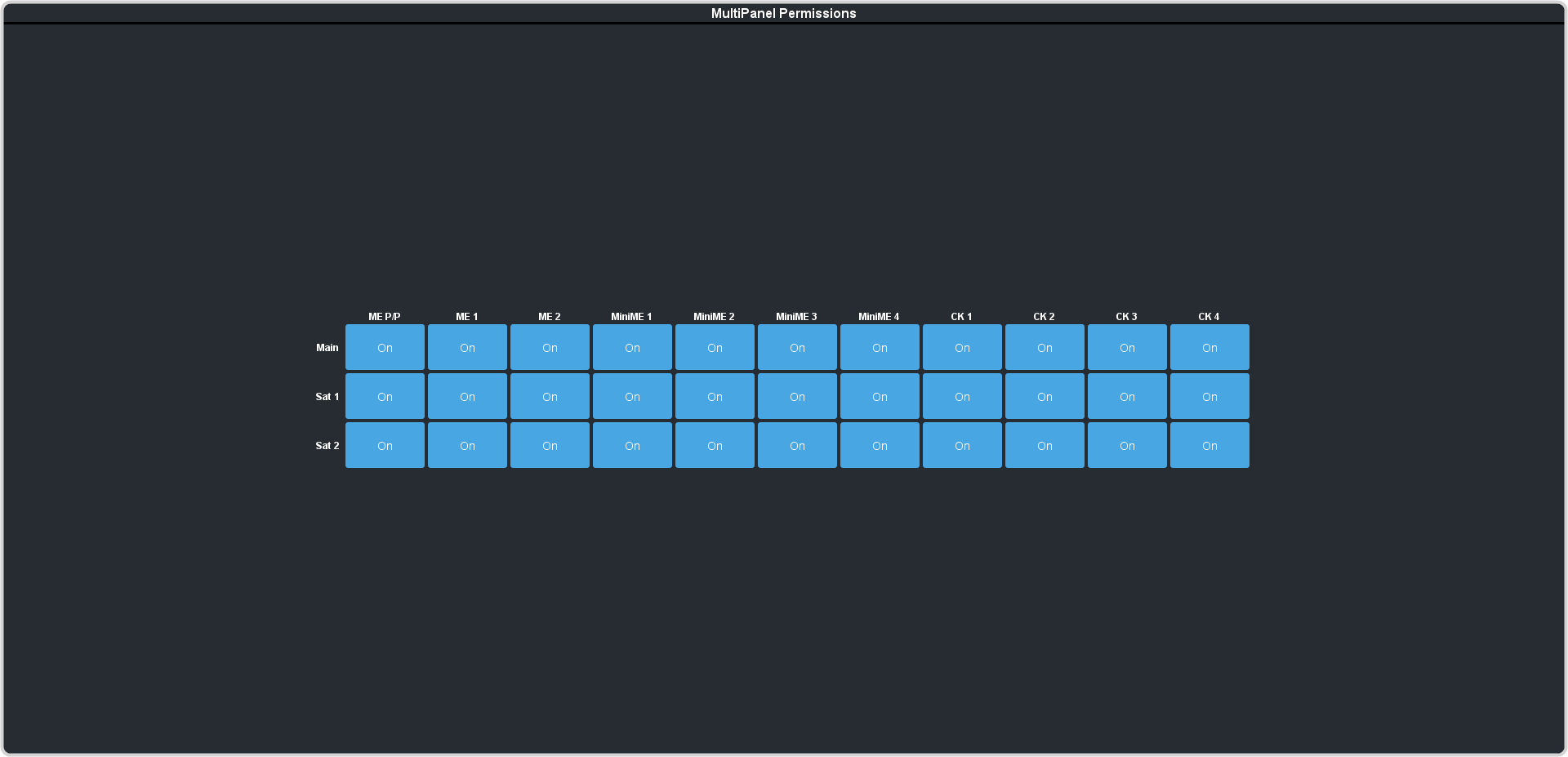

Click Navigation Menu > Configuration > System > MultiPanel.
Click a Main, Sat 1, or Sat 2 button to select whether that control connection has access to that resource.

Note: SoftPanel and Main share the same permissions.

Note: A control panel must have permission to at least one ME.
