To Assign Audio Channels to Mix Layers

Select which audio sources are visible on each mixer layer.

Click Navigation Menu > Audio Mixer > Config.

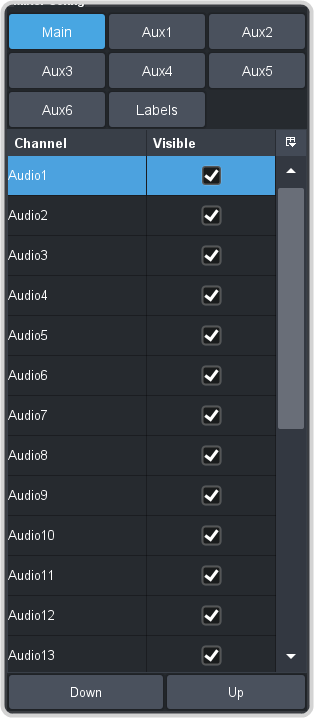

In the Mixer Config area, click the mixer layer tab (Main, Aux X) you want to show or hide audio faders on.
Uncheck the Visible box to hide a fader on the selected layer.
Change the order of the audio faders on the mixer layer by moving an audio source Up (left) or Down (right) in the list.

Tip: To change the name of a mix layer, click Label and enter the new name in the field.
