To Set Up Audio Faders

Assign audio sources to each fader in the mixer.

Click Navigation Menu > Audio Mixer > Config.
In the Fader Config area, click the Fader Source button for the fader you want to assign an audio source.

Assign an audio source to the fader or select Off to turn the audio fader off.

Tip: You can rename a fader by entering a new name in the Label field.

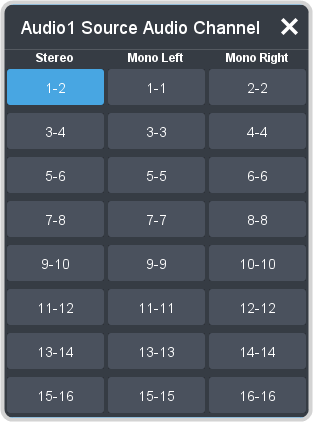

Click the Audio Source button and click the stream pair that you want to use.
- Stereo — select the stereo pair that you want to use.
- Mono Left — select the left mono pair you want to use. The left channel audio is put on both the left and right channels.
- Mono Right — select the right mono pair you want to use. The right channel audio is put on both the left and right channels.
Click the Delay (ms) field and enter a delay value (0-20,000 ms) to align the audio to the video signal, if needed.
Toggle the AFV Trans button to either have the audio sources fade in and out (Fade) or have a cut between the audio sources (Cut) when the associated video source is taken on or off-air.
- Fade — the audio source level is taken down (going off-air) or up (going on-air) as the transition progresses. The rate of the audio fade is tied to the length of the video transition.
- Cut — the audio source is cut on-air at the beginning of the transition (going on-air) or cut off-air at the end of the transition (going off-air).
Note: Each audio source is transitioned according to how the AFV transition is set. For example, if Audio 1 is set to Cut and Audio 2 is set to Fade and you perform a transition from Audio 1 to Audio 2, Audio 1 will remain on and cut off at the end of the transition and Audio 2 will fade in through the transition.
Click the AFV Trigger button and select the video source(s) that you want the audio transitions to follow. By default, the audio follows the video it is embedded in. You can select multiple sources.
