To Configure Audio Outputs

Click Navigation Menu > Configuration > Outputs.
In the Video + Audio section, click the Audio Mix button for the video output you want to assign an audio source to and select the audio source.

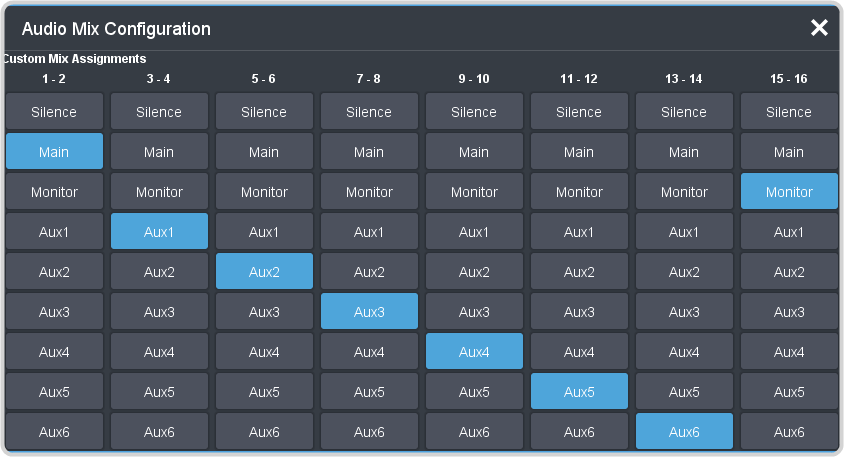

- Custom — select which audio source will be embedded on each stereo pair.
  - Silence — embed silence.
  - Main — embed the main audio mix from the internal audio mixer.
  - Monitor — embed the monitor mix from the internal audio mixer.
  - Aux X — embed the audio from Aux Bus X.
In the Audio Only area, click New Playback Device.
Click the Playback Device button and select the audio playback device you want to use.
Click the Audio Mix button and select the audio source you want to assign.
In the Delay field, enter the amount of audio delay you want to ally to the output.

Tip: Delay can be used to compensate for the output framebuffer delay.
Click Save.

Tip: You can delete a playback device by clicking the Remove button for the device.

Tip: Click the Audio Mix button to select a different audio source for the playback device or enter a new value in the Delay field to edit an existing playback device.
