Connecting ViewControl over HDMI™

ViewControl combines an overlay image from DashBoard with a custom MultiViewer output from the switcher to generate the interface. This requires some external SDI/HDMI video conversion equipment, as well as a touchscreen display.

Note: An input FSFC should be applied to the input you are using for ViewControl.

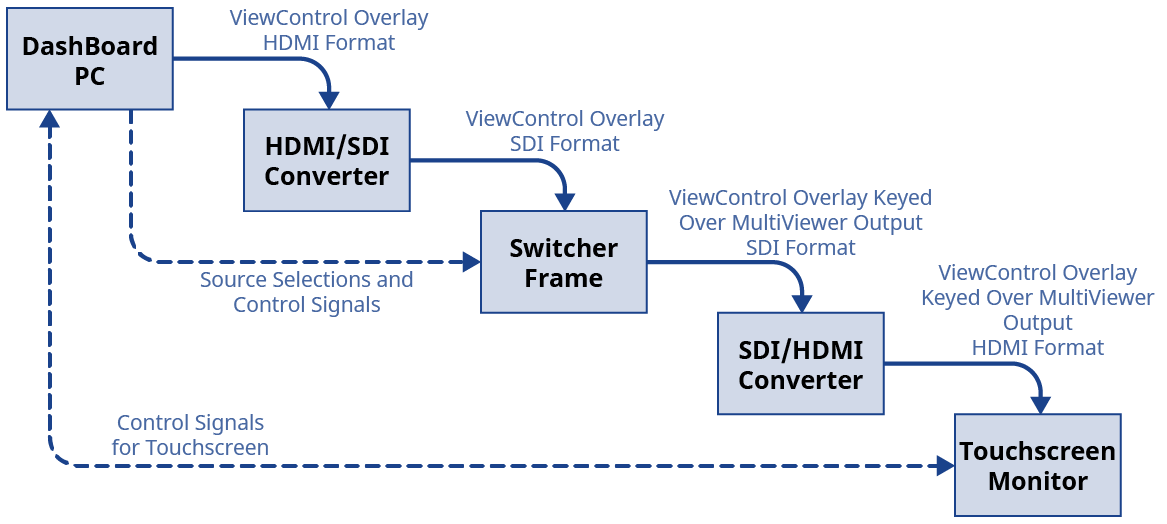

The following connections are required for ViewControl:

ViewControl is only supported in 1080p, 1080i, or 720p. The switcher must be operating in one of these formats for ViewControl to operate.
Set the output resolution of the DashBoard computer to either 1920×1080 or 1280×720.
Use an HDMI to SDI converter to take the output of the DashBoard computer and put it into a resolution that the switcher can use. Ensure that the resolution is not changed.
Apply a FSFC to the input that is coming from the DashBoard computer.
Set up a MultiViewer to use a ViewControl layout.
Use an SDI to HDMI converter to take the output of the switcher and put it into a resolution that the touchscreen monitor can use. Ensure that the resolution is not changed.
Connect the USB cable for the touchscreen to the DashBoard computer.
