Video Input Setup
UHDTV1 Sources

UHDTV1 Sources

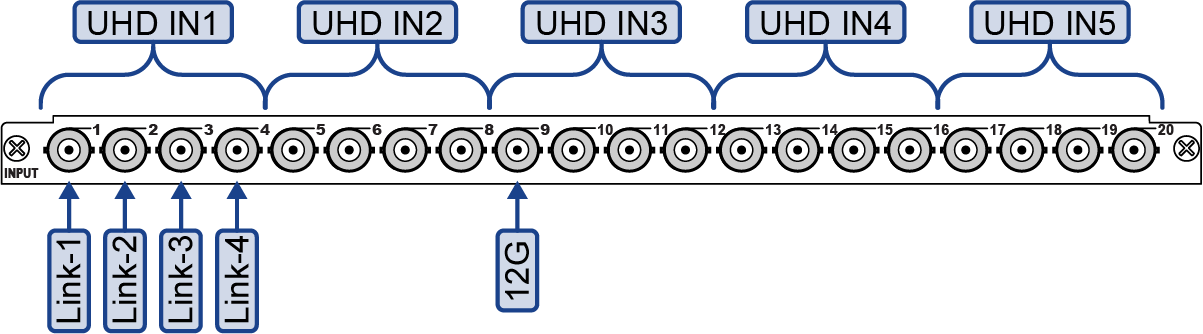

The switcher can accept UHDTV1 inputs in either 3Gb/s UHD-2SI or UHD-QSD, or 12Gb/s UHD-2SI. Each input consumes 4 input BNCs, even with the single 12Gb/s input.

Note: Only 2 UHDTV1 inputs on the MultiProcessor Input and 12G MultiProcessor Input boards can import UHD-QSD 3Gb/s video signals.

Note: Only the 12G MultiProcessor Input and 12G Output boards can process UHDTV1 12Gb/s video signals.
