Ultritouch Operation

The DashBoard interface on Ultritouch allows you to assign sources to aux buses as well as select sources on an ME bus.

The Ultritouch can display either an aux panel or an ME bus. You can quickly switch between the pages using the popout menu. Click on the > tab to access the menu.

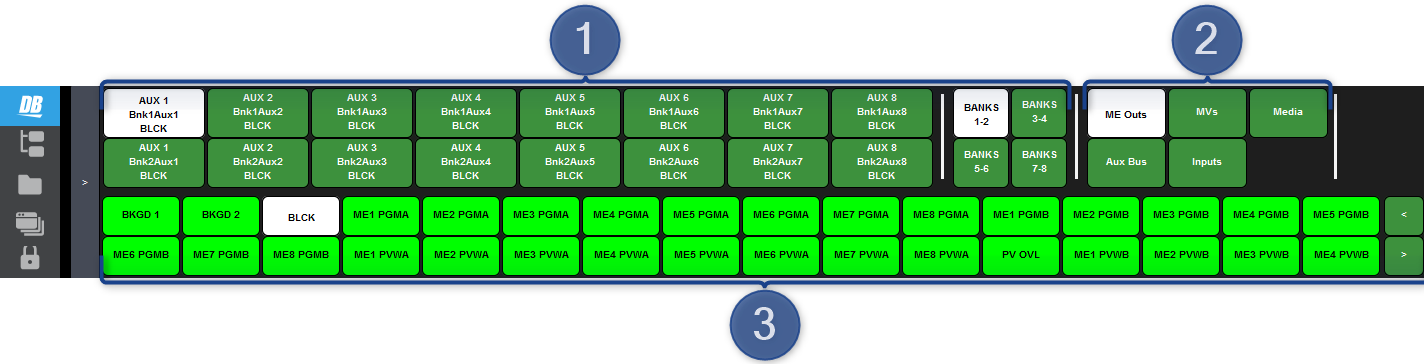

Aux Panel

  1. Aux Bank/Bus — select the aux bus you want to assign a video source to.
  2. Source Buses — select the type or source of the video source you want to assign to the aux bus.
  3. Video Sources — select the video source you want to assign to the selected aux bus. Additional sources are available by tapping the < or > buttons at the right of the row.

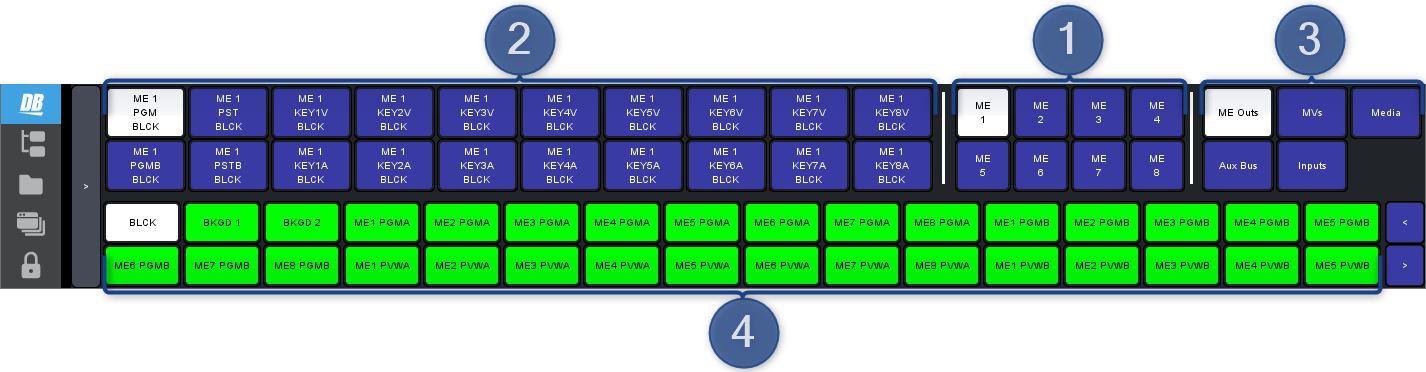

ME Bus

  1. ME — select the ME that you want to select a bus on.
  2. Bus — select the bus on the ME that you want to select a source on. Each button shows the ME, bus, and currently selected source.
    • Top Line — the ME
    • Middle Line — the bus on the ME (PGM, PST, PGM B, PST B, KEY X V (Video), KEY X A (Alpha))
    • Bottom Line — the video source currently assigned to that bus.
  3. Source Type — select the type of source you want to assign to the selected bus.
  4. Source — select the source that you want to assign to the selected bus.
