To Assign a Color LUT to a Media Item

Assign a Color LUT to an media item in the database.

Click Navigation Menu > Live Assist > Media > MediaManager
Click on the media item that you want to assign the Color LUT to.

Note:
A Color LUT can only be assigned to a database entry of the media item. If you select a channel, the Color LUT assignment is grayed out.

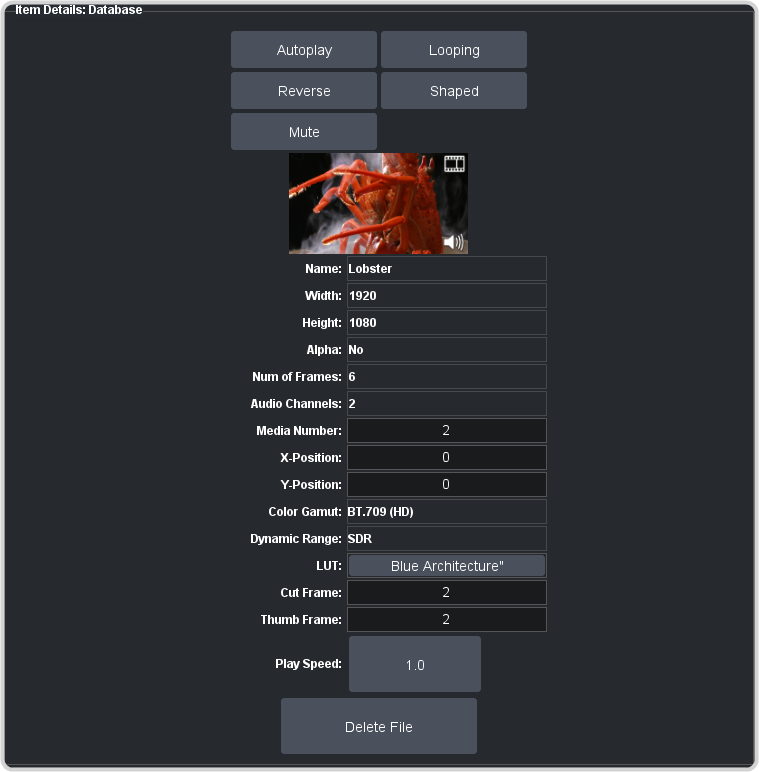

Click on the LUT entry and select the Color LUT you want to assign to the media item.

Note:
If the media item is already loaded into a channel, you must eject the media item and load it again to apply the Color LUT.
