HyperMax Hardware Setup
The router and switcher components of HyperMax must be set up separately before they can work together.
Important: Refer to the documentation that came with your Ultrix™ router for cabling and power procedures. The SDPE blades do
not need independent power connections in the Ultrix FR5-NS or Ultrix FR12 frames.

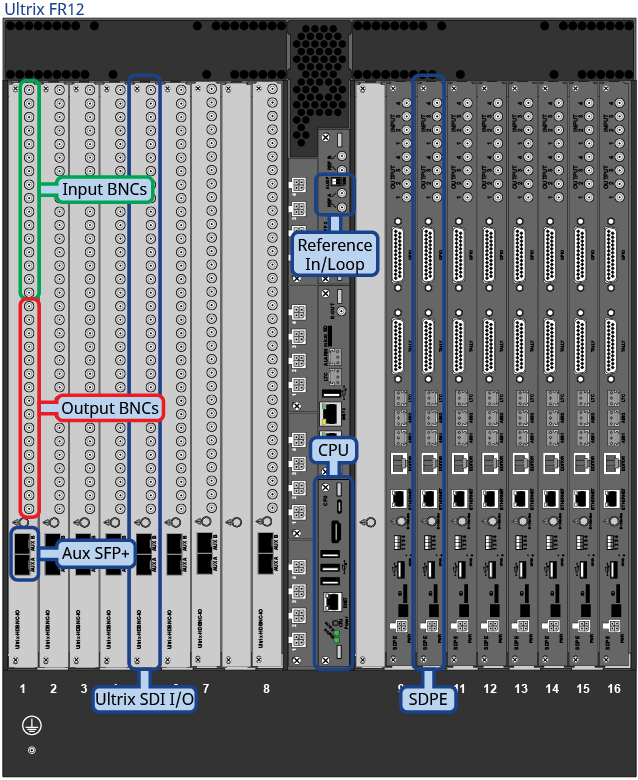

The switcher consists of the CPU and up to 8 SDPE blades that can each be configured as a MaxME, MaxMini, or MaxScene. The switcher must contain at least one MaxME configured as ME P/P. The ME P/P blade is the main controller of the switcher and the blade you will interface with to control the switcher. Identifying what blade is in each slot will help when you are working with the router database.
Note: Refer to the Ultripower documentation for information on using the Ultripower Manager to power up a multiple Ultripower units at the same time.
Tip: Even though Slot 1 is the second slot in the router, the database will start counting destinations and sources starting with the Flex Slot.
