Ultritouch

The 2RU rack mountable Ultritouch adaptable system control panel allows you to control some aspects of switcher operation using a DashBoard interface.

The DashBoard interface on Ultritouch provides status, buses, and custom control tabs. You must connect to the switcher from Ultritouch to be able to control the switcher functions. Refer to the Ultritouch documentation for information on navigating the Ultritouch menu and manually connecting to a device.

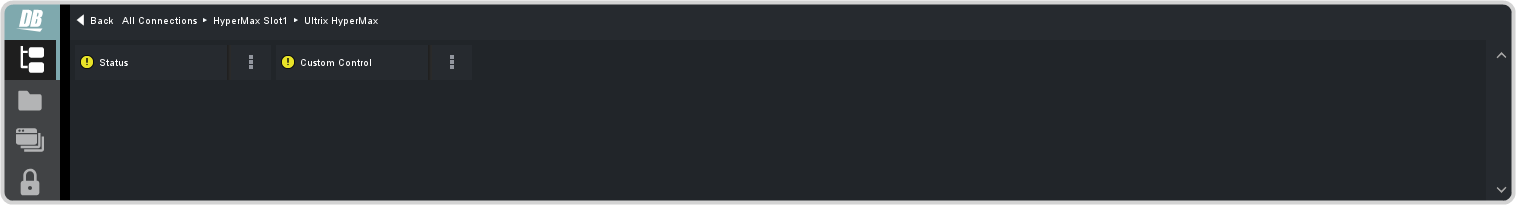

Once you are connected to the switcher, tap the Connected Devices button and select the switcher you want to control from the list and tap Carbonite. The available tabs for the switcher are listed. Tap one of the available tabs to open it.

Navigation Menu

Tap the > button on the left and tap the tab you want to navigate to.

Status

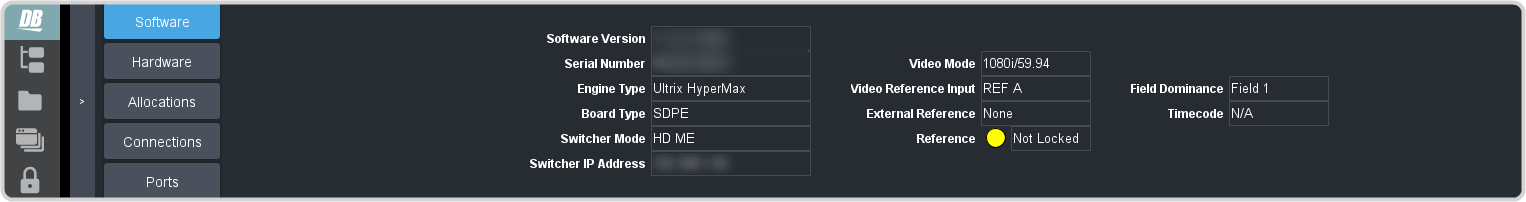

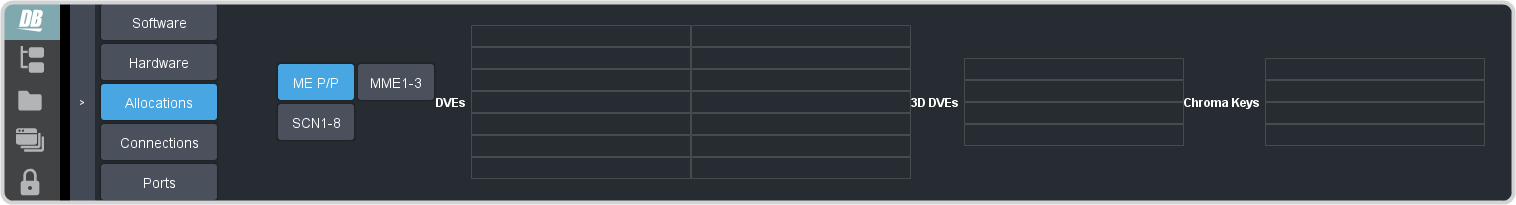

This tab allows you to view status information for various switcher components. These tabs are the same as the Switcher Status tab from a DashBoard computer.

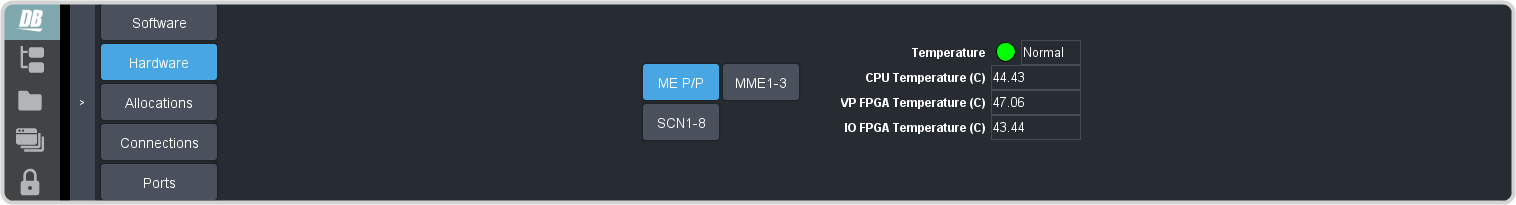

Tip: View the hardware status of each SDPE blade assigned to the switcher by clicking on the button indicating the role that blade is performing in the switcher.

Custom Control

This tab allows you to run custom controls on the switcher. This tab is this same as the Custom Control ShotBox tab from a DashBoard computer. You cannot edit a custom control from this tab.

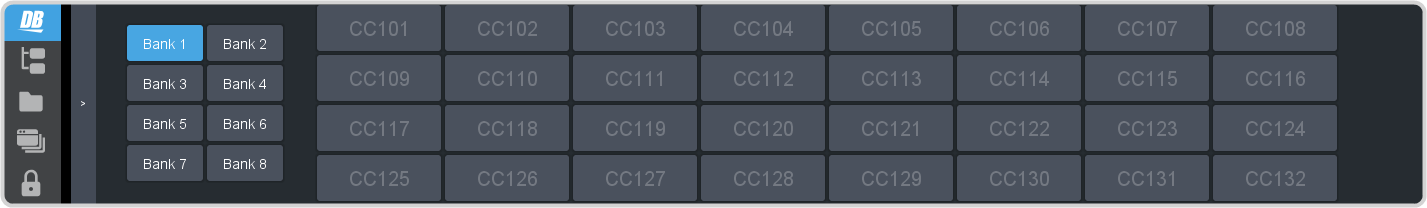

1. Tap the bank for the custom control you want to run.
2. Tap the custom control on the selected bank that you want to run.
