To Set the Key Priority

Set the key priority for keys on ME and MiniME™ outputs.

Click Navigation Menu > Live Assist > MEs and select the ME or MiniME™ you want to set the key priority on.

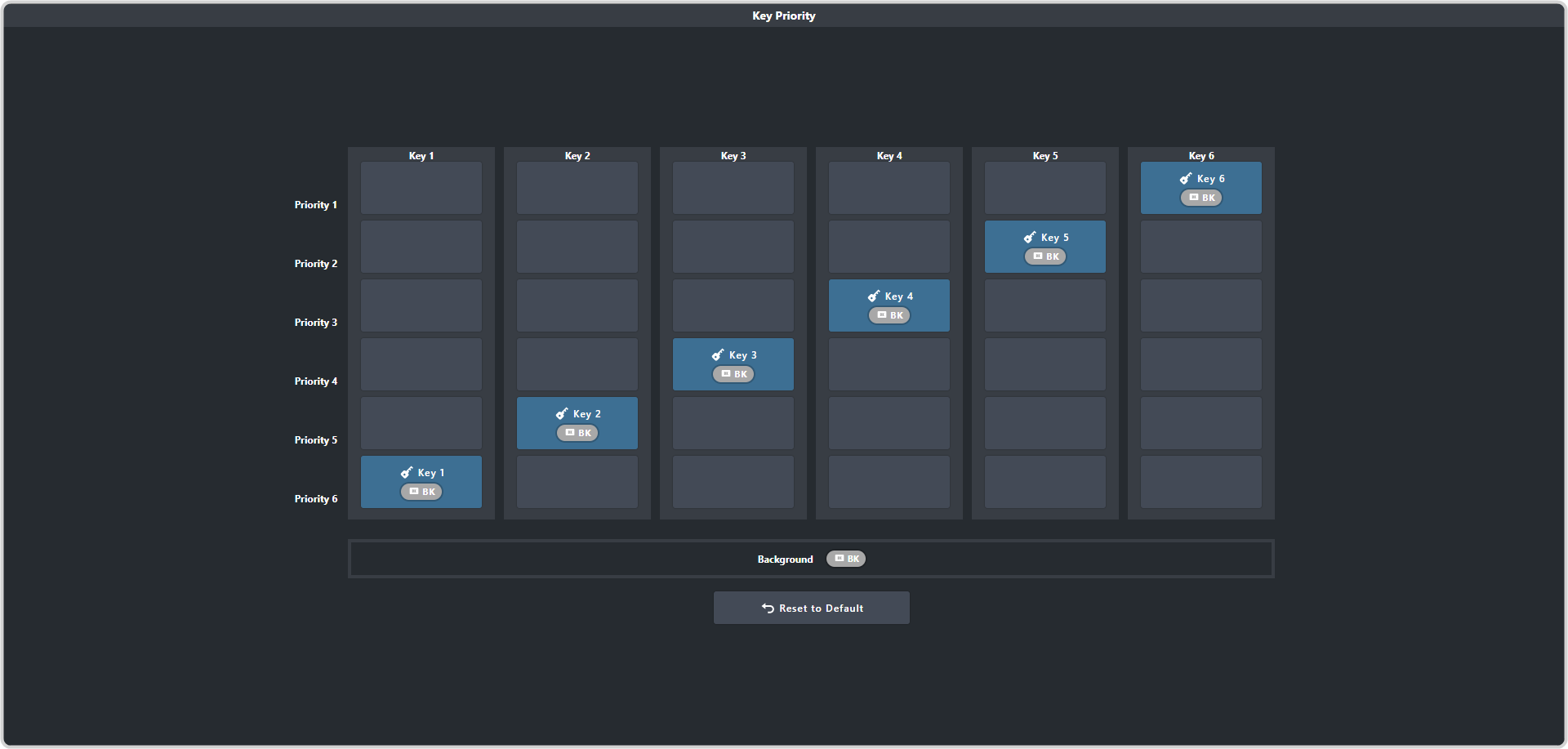

Click Key Priority.
In the Key x column for the key you want to adjust the priority for, click the Priority button for the new priority you want to set for that key.

The lowest priority (highest priority number) is directly on top of the Background and all other keys are layered on top in order to the highest priority (Priority 1). Multiple keys cannot be set to the same priority level.

Tip: The other keys will maintain there existing relative priority. This may result in all the other keys shifting up or down.

Tip: Click Reset to Default to return all keys to their default priority.
