Split ME Functionality

The Split ME functionality allows you to take advantage of the configurable program outputs feature to create two semi-independent MEs (Program A and Program B) in a single ME.

Note:

To set up the split ME, you must assign the BKGD/PST B-Side to a Program outputs. This gives the B-side of the ME independent outputs. Refer to Configurable Program Outputs (MultiFeed) for setup information.

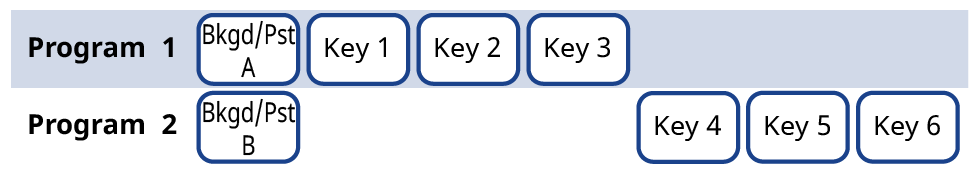

Figure 1. Split ME Configuration Example

The configurable program output functionality also allows you to further split the MEs by separating the keyers to one program output or the other, or have them applied to both MEs.

Keep the following in mind:

Keep the following in mind when working with a split ME.

You can assign multiple program outputs to the A-side or B-side. All program outputs assigned to the selected side will tally and transition with that side.
Sources selected on the background and preset buses of the A-side or B-side are independent of each other.
You can transition the A-side separately, the B-side separately, or both together.
The A-side and B-side use the same transition type, rate, and inclusions.
Keys are independent of the A-side or B-side and appear in the output of either side depending on whether they are included in the configurable program output.
Both the A-side and B-side tally independently when re-entered on-air.
Only a single DVE transition can be performed at a time on an ME. If multiple program outputs are set to a DVE transition, the lowest number Program Output will perform the DVE transition and the other program outputs will perform a cut.
The B-side uses the same glow color as the A-side.
