- MaxScene
  MaxScene provides a simplified interface for creating a show with multiple key layers and basic transitions.
  - Scene Overview
    - To Create a Scene
  - MaxScene Memories

To Create a Scene

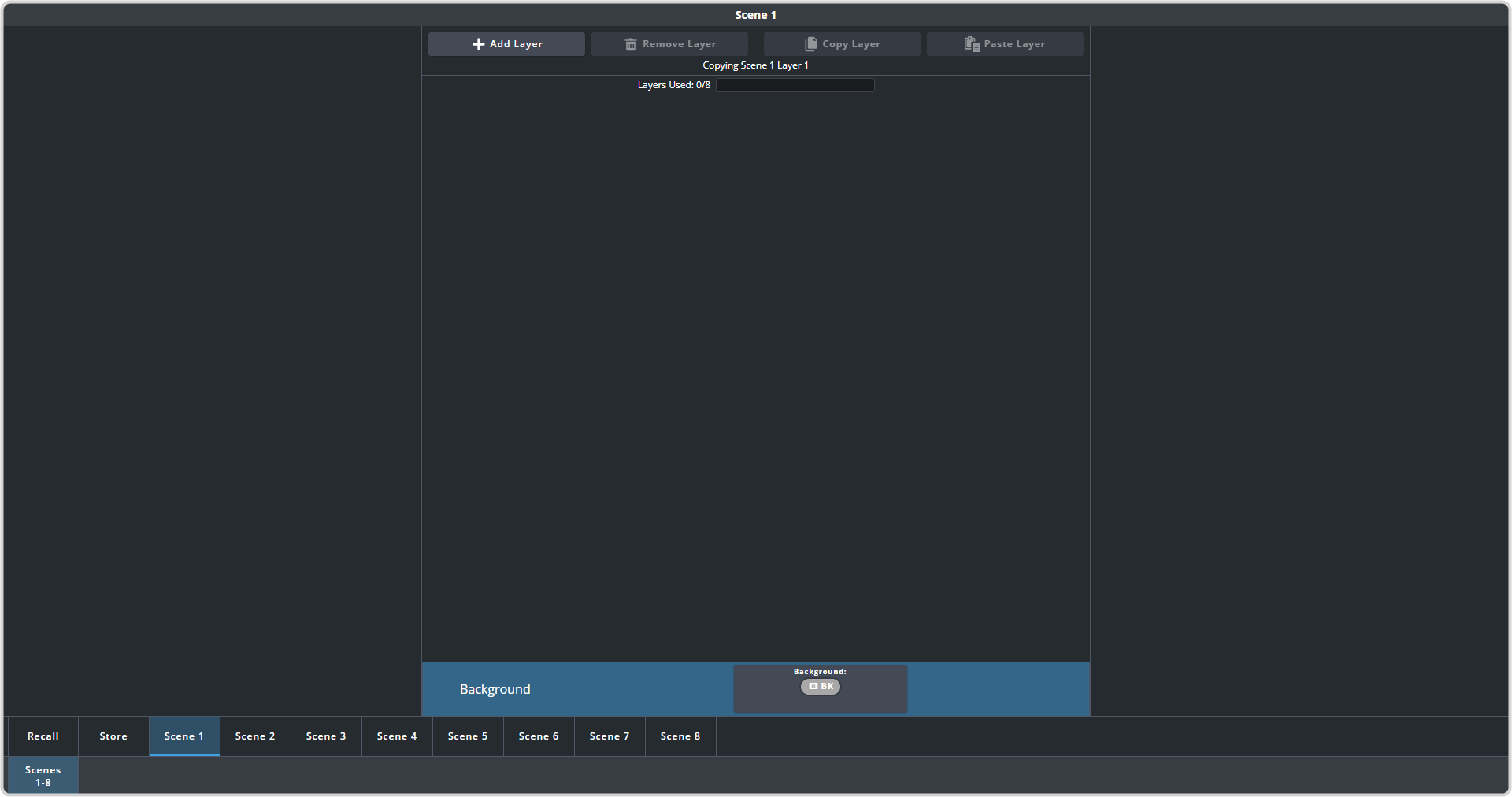

Click Navigation Menu > Live Assist > MaxScene > Scenes x-y > Scene X for the scene you want to use.
Click the Add Layer button to add as many layers as you need for your show.

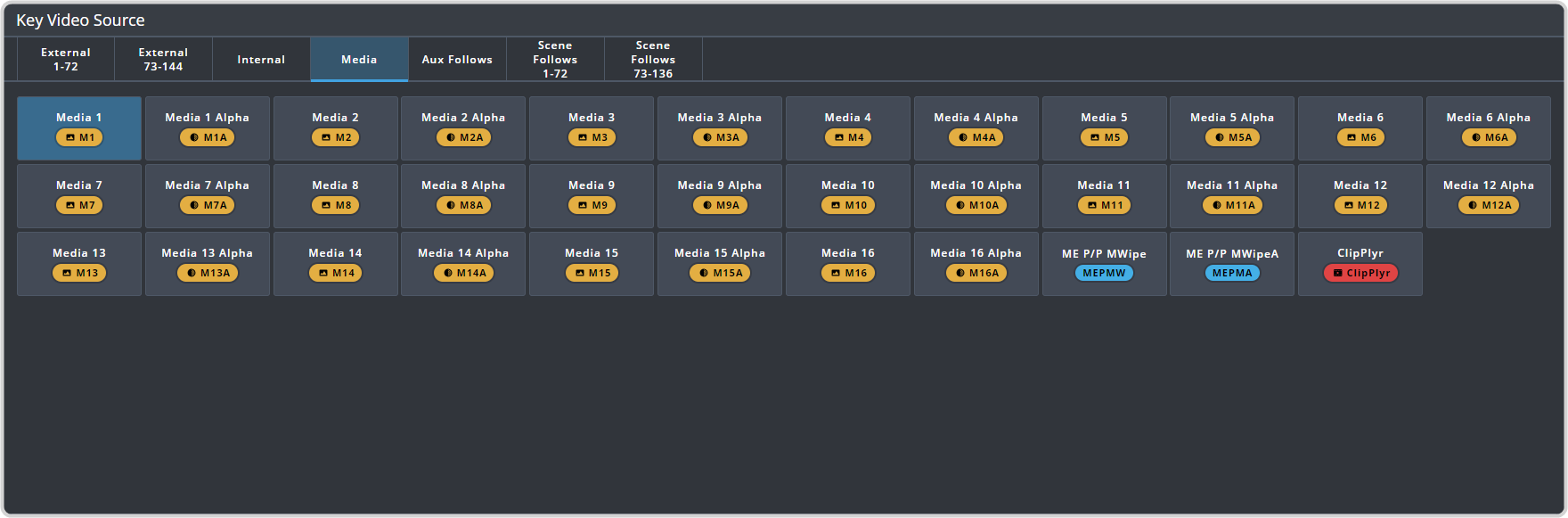

Click the Key Video button for the layer you want to set up and select the source you want to use for the layer.

Tip: If you want to use a different alpha for the key, click Key Alpha and select the alpha source you want to use.

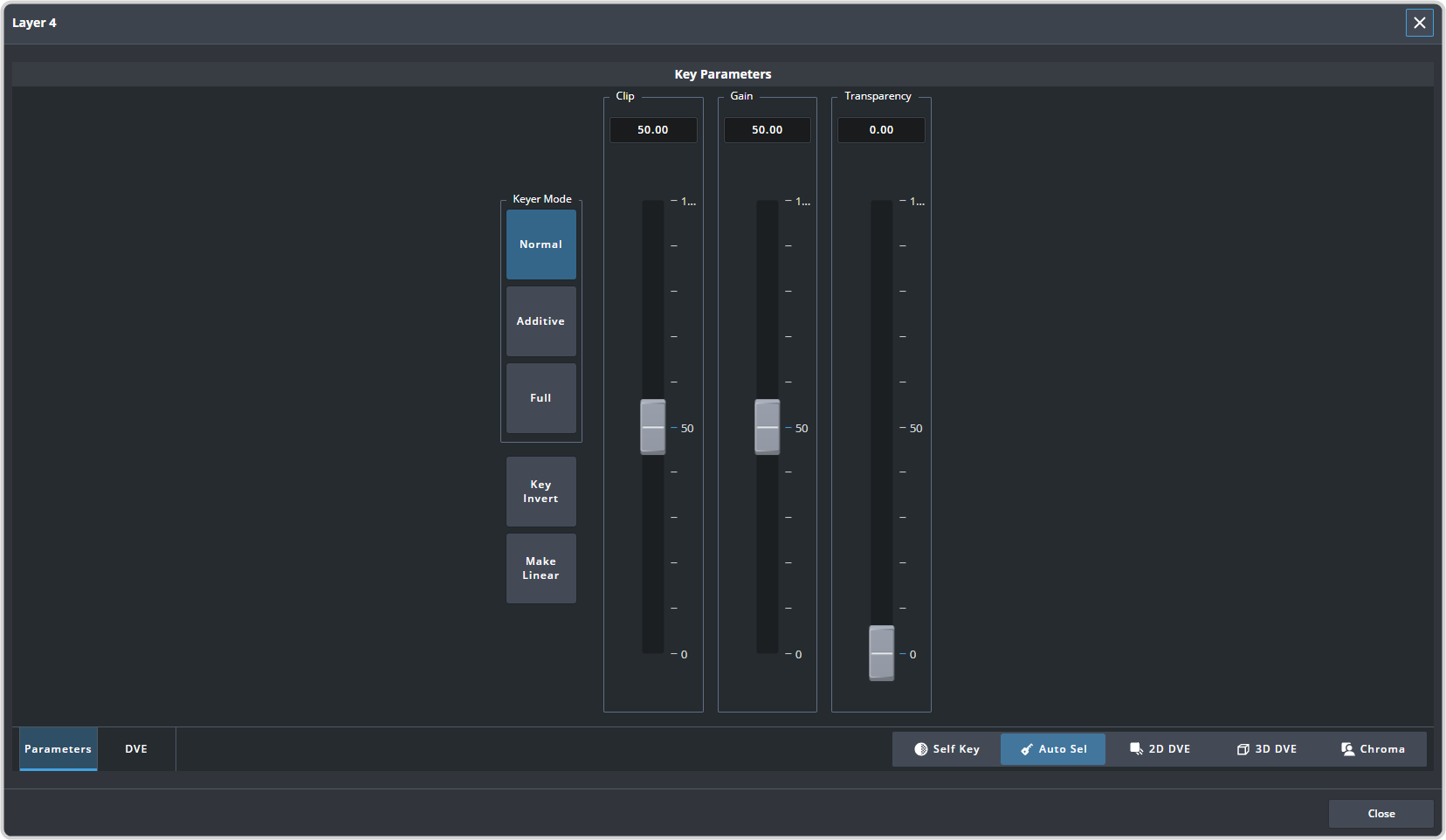

Click the Auto Sel (key type) button and select the type of keying you want to use for the layer. Layer types are set up in same way at key types. Refer to Keying for information on setting up different key types.

Tip: If PaneLINK is active, the 3-knob menu will jump to the menus for the layer you are setting up.
Click the On/Off button to select whether the layer is on-air (On) or off-air (Off).

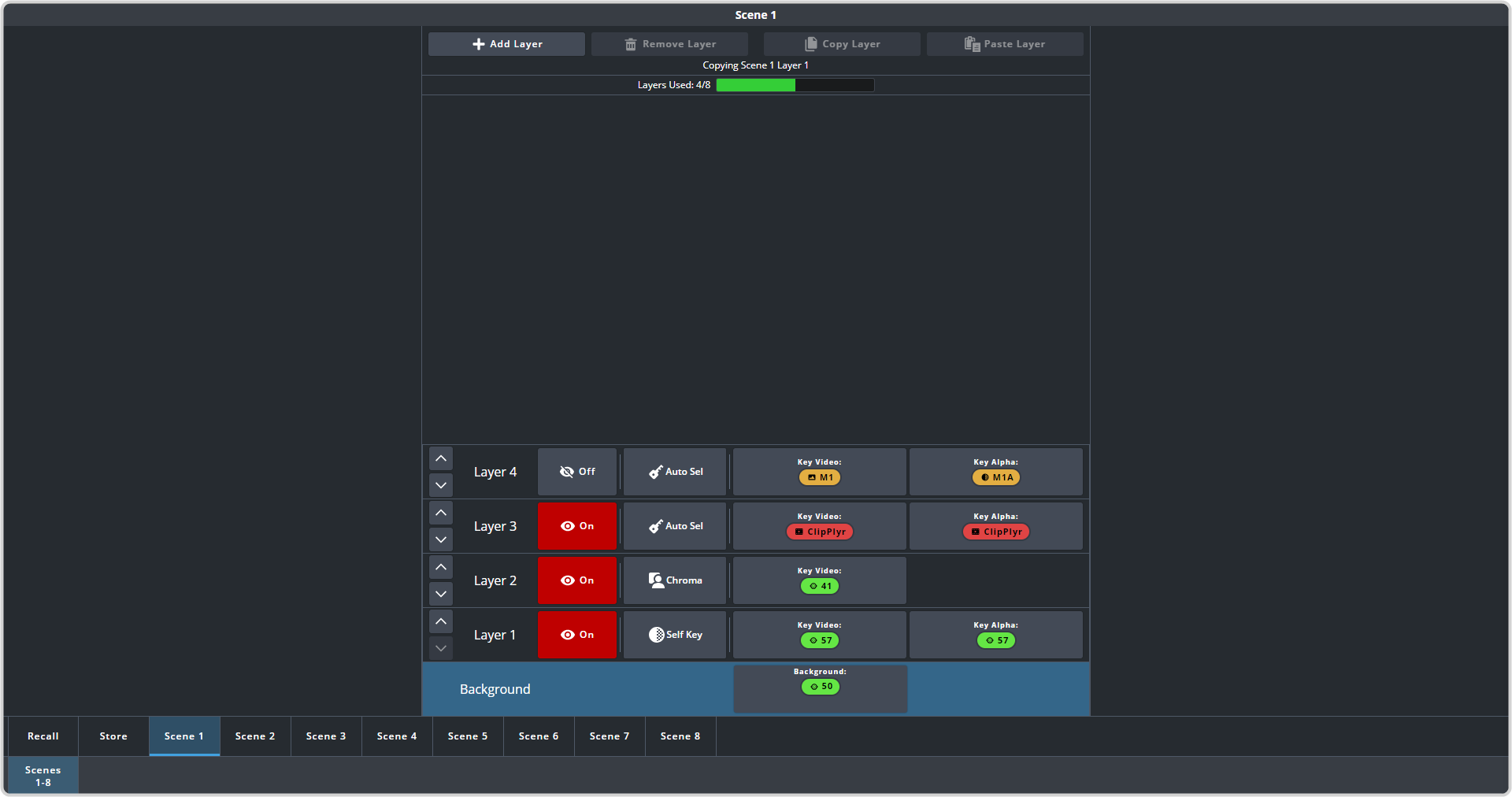

Set up the remaining layers as required.

Tip: If you want to change the order of the layers, click and hold on the name of the layer position (Layer 1 for example) and drag it to the new position you want it to be and release. The new position is always between two existing layers or at the top or bottom. When you move the layer the other lays will shift to fill in the gap.

Tip: You can copy a layer (Copy Layer) and paste it (Paste Layer) over any other position on the same or a different scene on the same SDPE blade. You cannot copy a layer from a scene on one blade and paste it to a scene on a different blade.
Click the Background button and select the source you want to use on the background. If you are using the scene as a key you can leave the background as black (BK).
