- MaxScene
  MaxScene provides a simplified interface for creating a show with multiple key layers and basic transitions.
  - Scene Overview
  - MaxScene Memories

MaxScene Memories

The MaxScene has an independent memory system that allows you to store and recall all the scenes, including layer assignments, video sources, and on-air status. This memory system is not tied to the switcher memory system that can also be used to store and recall the video assigned to each layer.

To Store an MaxScene

Set up the scenes as you want them to be recalled.
Click Navigation Menu > Live Assist > MaxScene > Scenes x-y > Store.
Click the button for the memory location you want to use.

Tip:
To clear a memory register, click on the memory you want to delete and click Delete.
Click Store.

Click the Set Mnemonics button for the MaxScene memory you want to customize the name and mnemonic for.

Tip:

If you want to set a name and mnemonic color for the Scene, you must go the Inputs menu.


Setting	Description
Name	Enter a new name for the memory in the Name field. Names are limited to 16 characters.
Foreground	Click a Foreground button to select the color you want to apply to the text on the mnemonic.
Background	Click a Background button to select the color you want to apply to the background on the mnemonic.

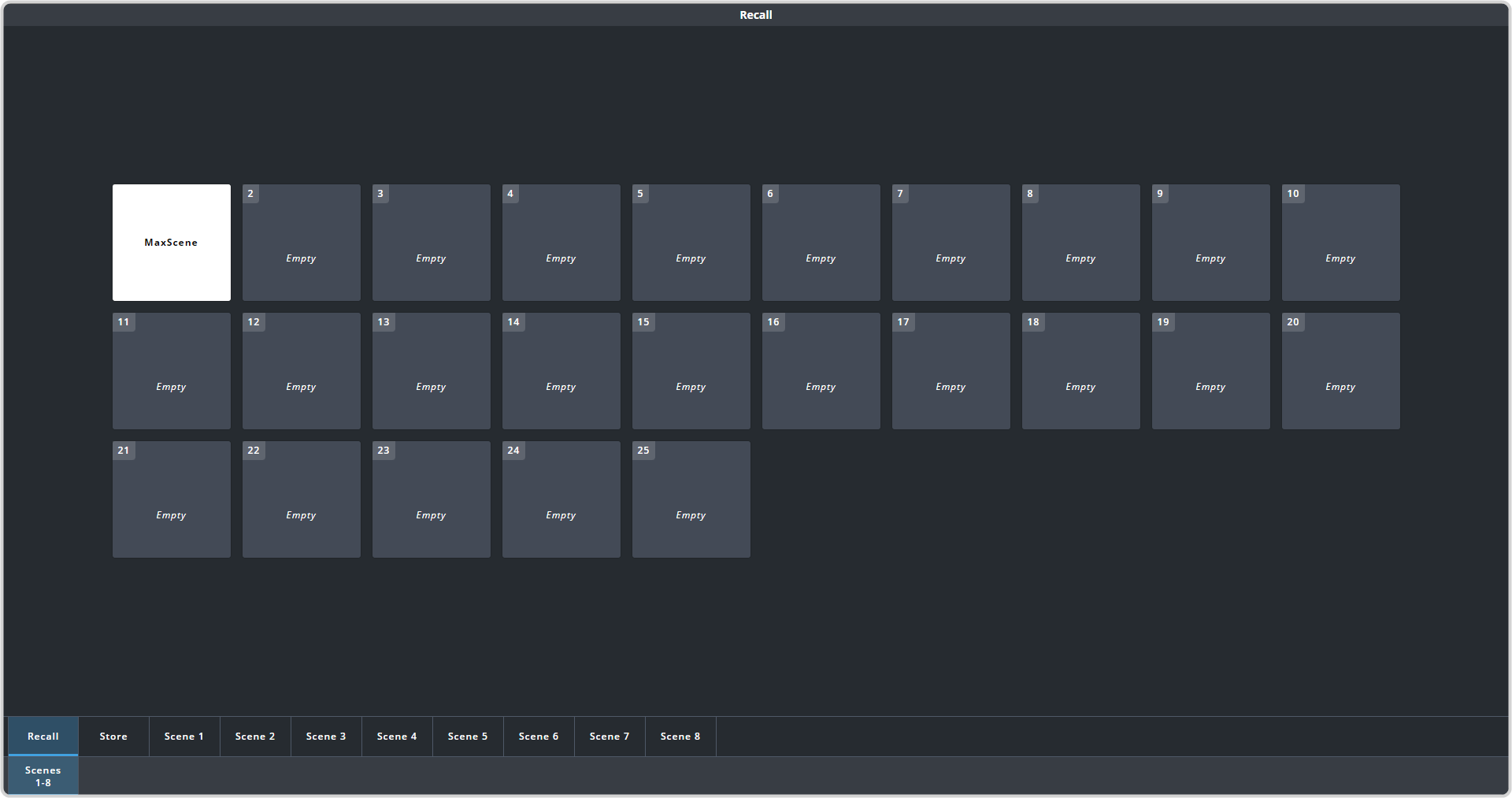

To Recall an MaxScene

Click Navigation Menu > Live Assist > MaxScene > Scenes x-y > Recall.
Click the button for the MaxScene you want to recall.
