To Assign an Animation to a Media Selection Button

To be able to select an animation for a media-wipe, you must assign animation to the boxes in the Media Selection area of DashBoard. Animation are assigned by their media number.

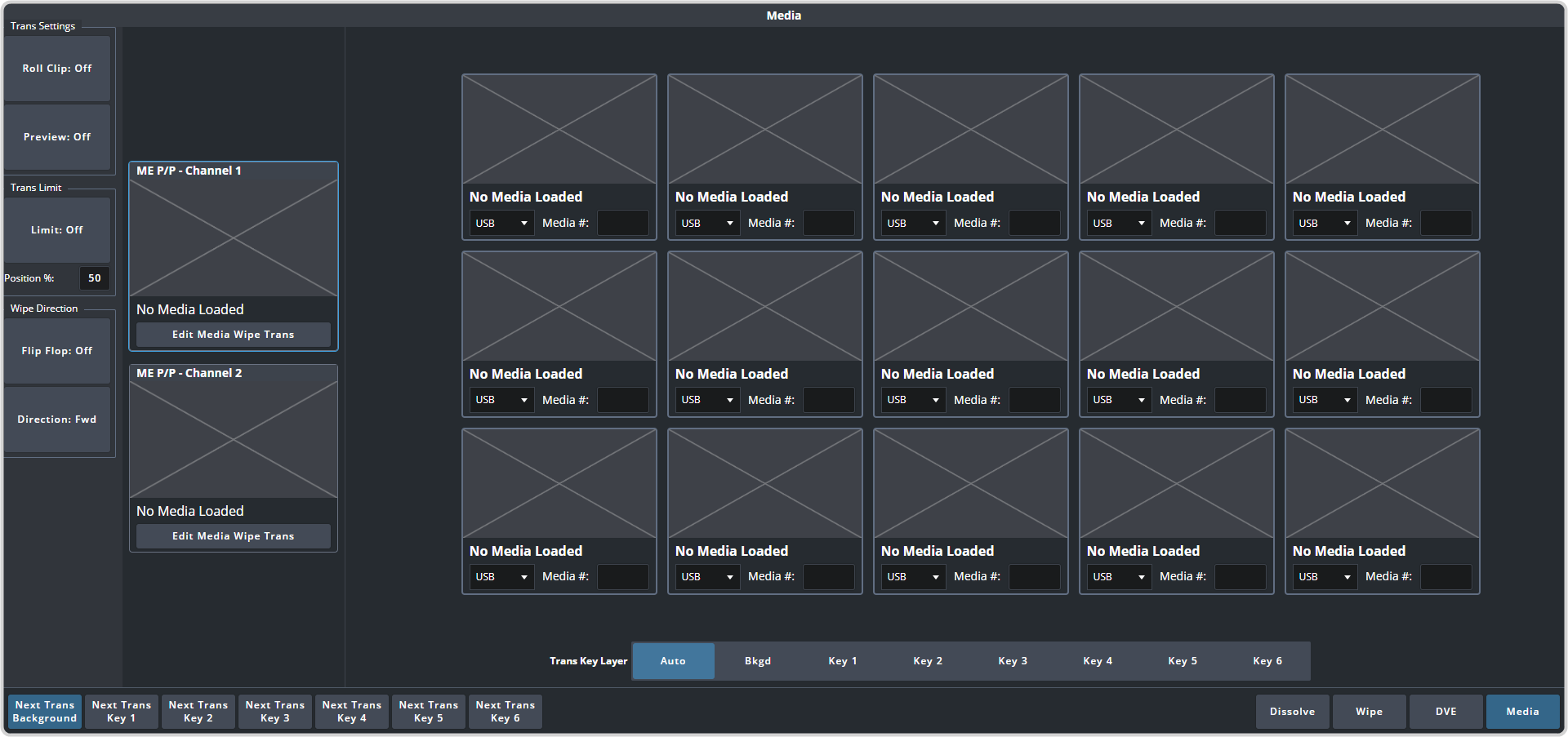

Click Trans > Media, or press MEDIA in the Transition area on the control panel.
Click the USB dropdown list below the thumbnail you want to assign to a media item and select the source of the media item.
- USB — the contents of the USB drive installed in ME P/P.
- NFS — the contents of the network file system.
Enter the Media Number for a media item you want to assign to the button in the field bellow the thumbnail.
