To Recall a Memory

How to recall a memory using DashBoard.

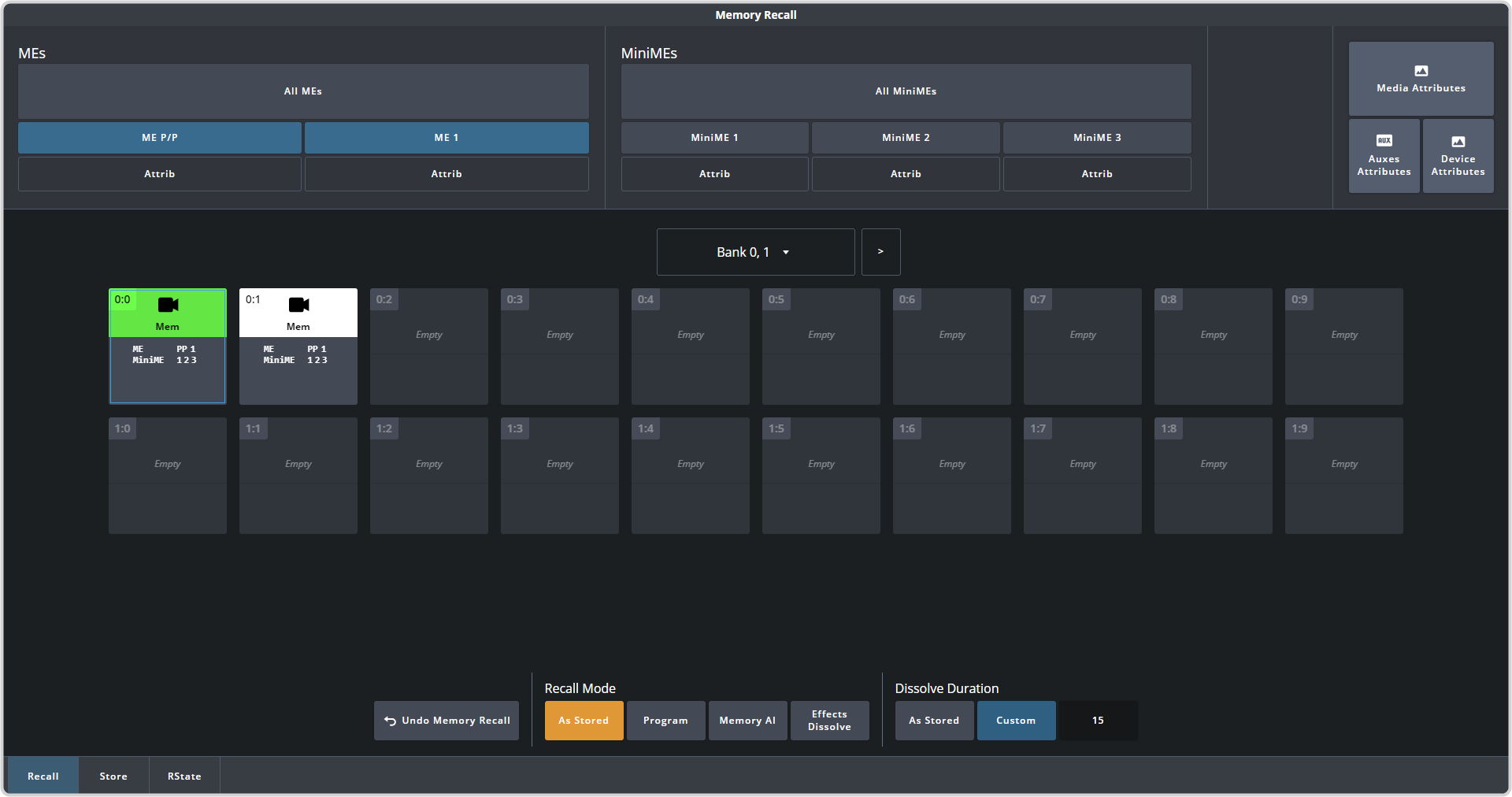

Click Navigation Menu > Live Assist > Memory > Recall.
Select the ME, MiniME™, and MaxScene that you want to recall the memory for.
Click the Bank 0, 1 button and select the bank you want to store the memory to.

Tip: The menu shows two banks of memories at a time. One bank on top and the next bank on the bottom. You can click the Bank button to select the bank directly, or click the < and > arrows you jump to the next pair of banks.
Click the button for the memory register you want to store the memory to.

Tip: The Bank and Register are shown in the upper left corner of the memory buttons. For example memory 0:0 is Bank 0 Register 0, and 3:5 is Bank 3 Register 5.

Tip: If a memory register already contains memory information, the button shows the inclusions that are currently stored for that memory.
Select the recall mode for the memory.

Note: Recall attributes are color-coded for how they are going to be recalled. Refer to Memory Attribute Color Coding for information on the color meaning.
- As Stored — recall the memory with the same attributes that it was stored with.
- Program — all elements are recalled as stored (default).
- MemoryAI — current on-air elements are unchanged and the transition area is configured to take the on-air elements of the memory on-air with the next transition.
- Effects Dissolve — recall the memory with an effects dissolve to the new memory elements. The time it takes to go from the current elements to the elements in the memory is set in the Effects Duration field or using the Effect Duration From Memory.
Set the memory attributes that you want recalled with the memory. Refer to Memory Attributes for information on memory attributes.

Note: All attributes are stored in the memory. Turning individual attributes on or off sets whether that item is included with the memory recall. Individual attributes can be turned on or off when the memory is recalled.
Click the X:Mem button to recall the memory.

Tip: Click Undo to undo the last memory recall.
