To Load a Clip

Important: Do not copy a clip to the drive while a clip is playing. Copying a clip to the drive while the Clip Player is playing a clip can cause the clip to stutter or stop.

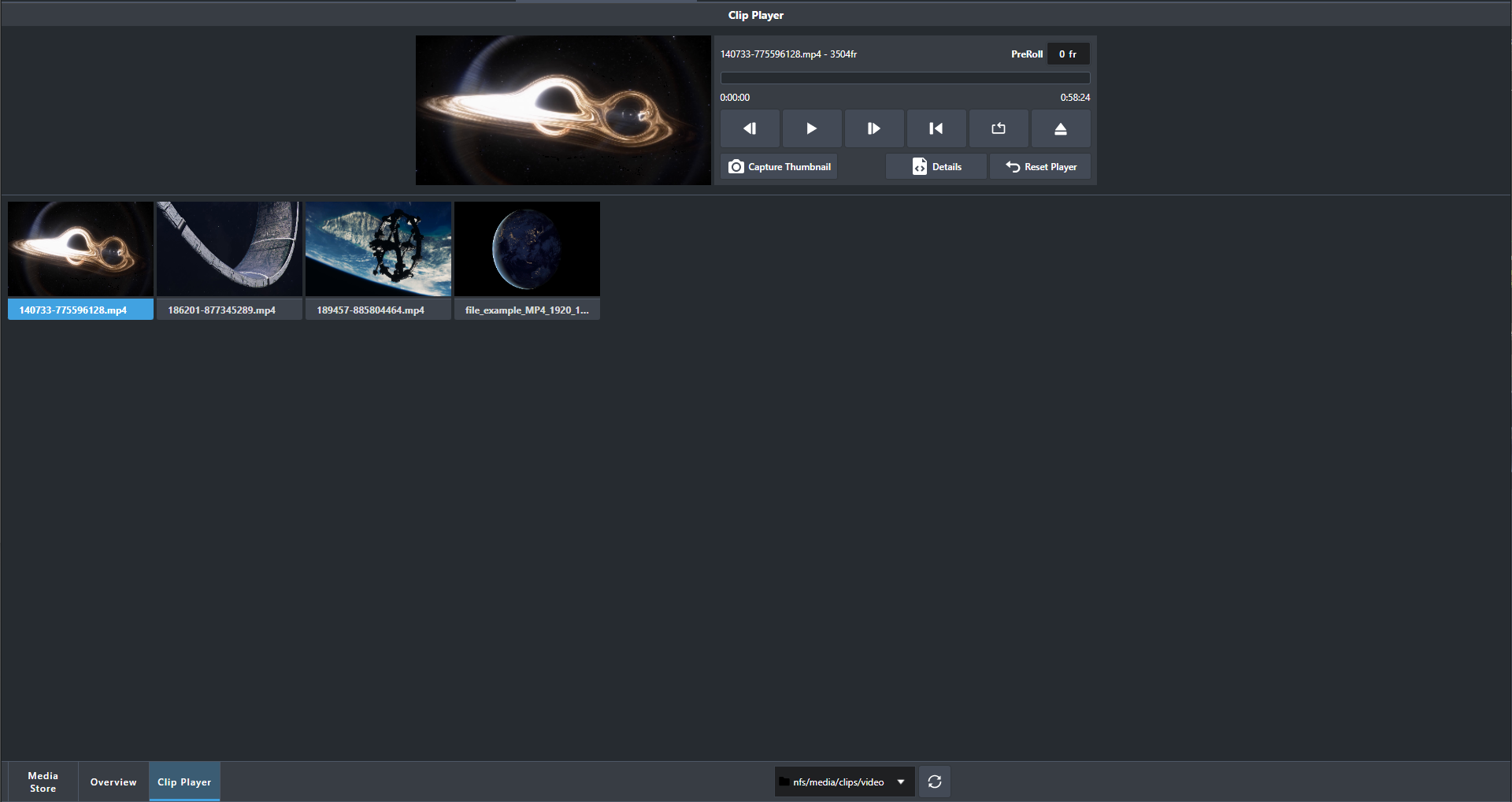

Click Navigation Menu > Live Assist > Media > Clip Player.
Click on the clip you want to load.

Note: The clips is loaded into the channel as soon as you click on it. If a clip is already playing it is ejected and the new clips is loaded.

Tip: If the clip you want to load does not appear in the list, click Refresh Clip List. The switcher re-scans the folder and updates the clip list.

Tip: You can use FTP to copy a clip to the switcher. Refer to To Create an FTP Connection for information on creating an FTP connection.

The clip is loaded and queued into the clip player.
Click Clip Details to view general, video, and audio information on the currently loaded clip.
