To Recall a MotionText Preset

Load and take MotionText presets.

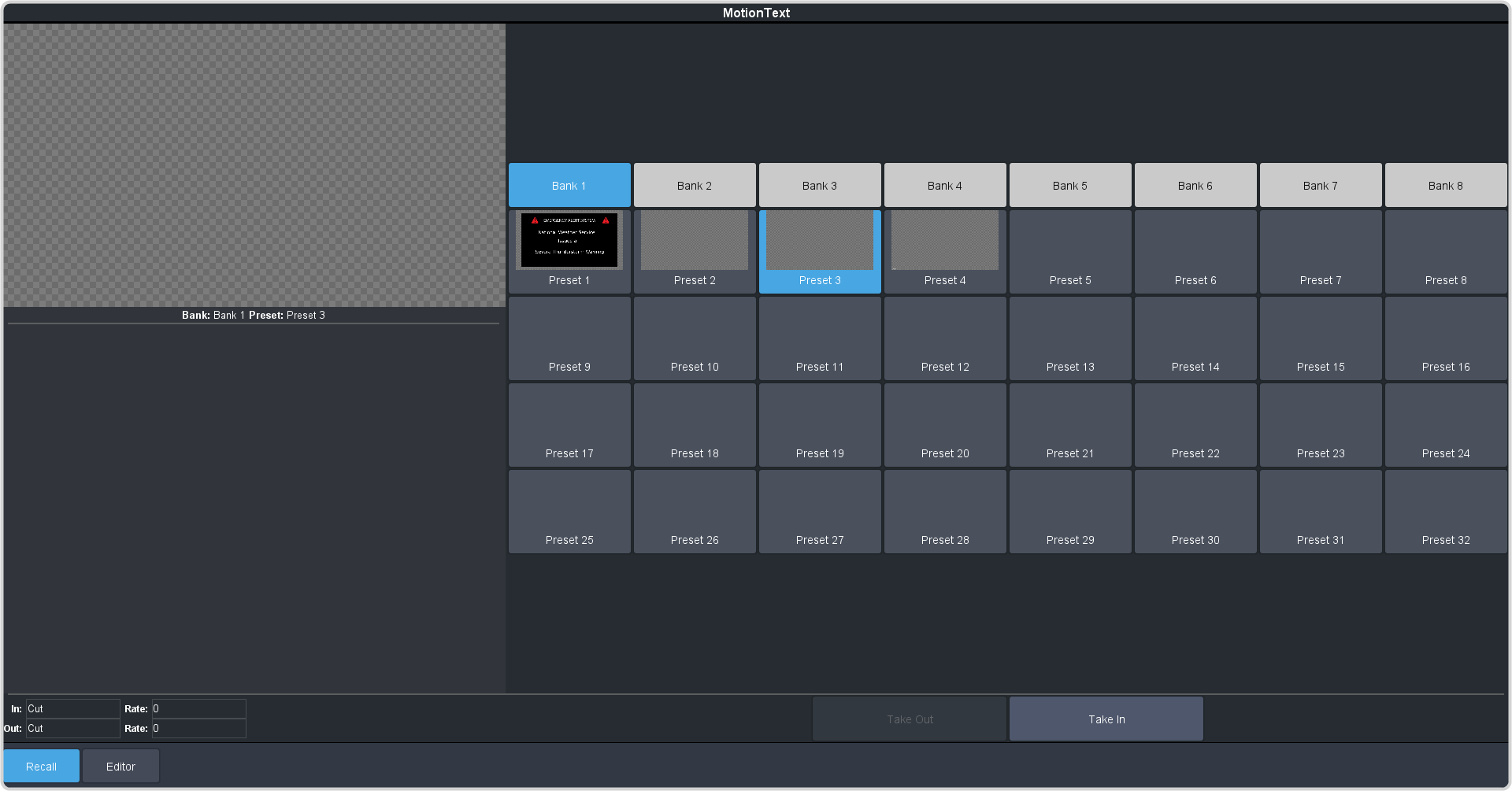

Click Navigation Menu > Live Assist > MotionText > Recall.
Click the Bank and Preset button for the preset you want to take on-air.
Select the MotionText source on the bus you want to use to take it on-air and transition that bus on-air.

Tip: Until MotionText is taken in the video is all alpha for a key or black from a background.

The On Air tally will appear under the preview and the Take In button will tally red.

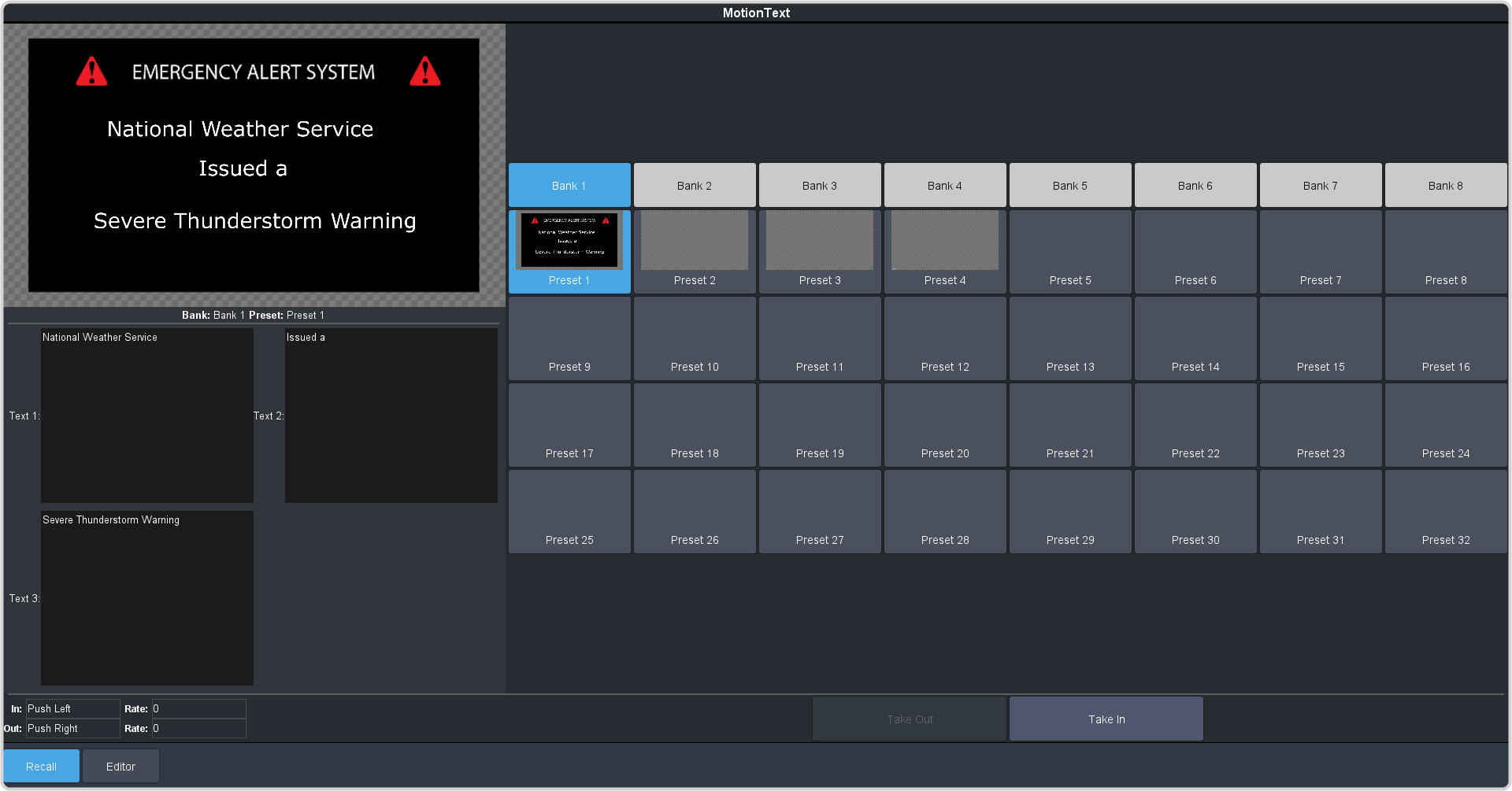

Click Take In to transition the MotionText preset on-air.
Click Take Out to transition the MotionText preset off-air.

Tip: You can hot punch to a different preset by selecting that preset while MotionText is on-air. This will not use the In or Out transitions.
