To Install the Frame Simulator

The frame simulator is imported as an appliance into VM VirtualBox.

To install the frame simulator on your computer you need the following:

  • Oracle® VM VirtualBox 6.1 or higher.
  • The Ross carbonite-black-sim-##.#.#.######.ova
  1. If you have not already done so, download and install the Oracle® VM VirtualBox on your computer.
  2. Launch VM VirtualBox.
  3. On the Oracle® VM VirtualBox Manager, click File > Import Appliance.
  4. Navigate to the Carbonite Black Sim OVA file and click Open.
  5. Click Next.

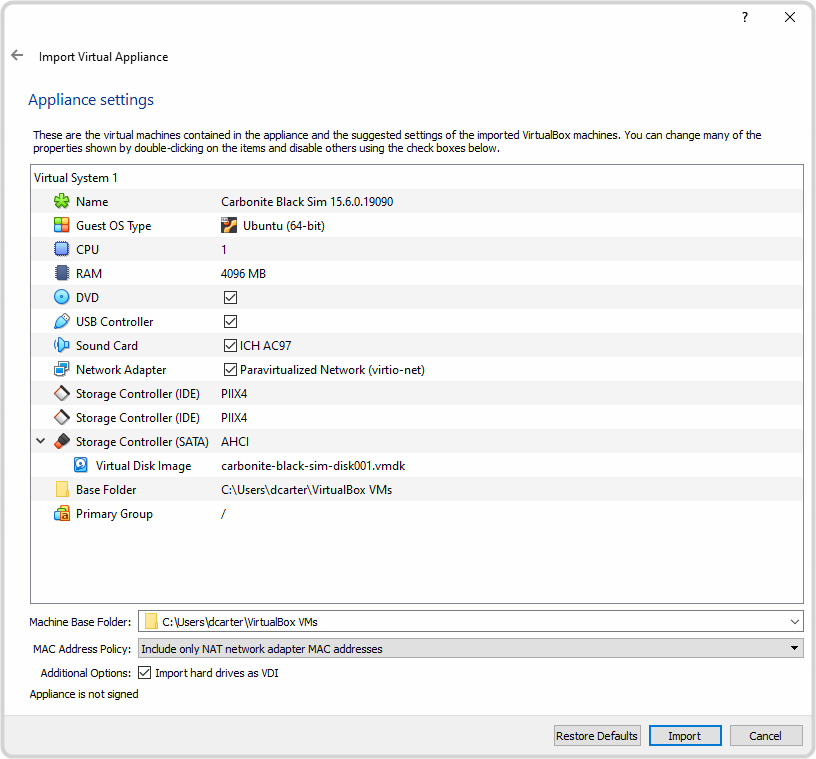

  6. In the MAC Address Policy list, select Generate new MAC addresses for all network adapters.
  7. Click Import and wait for the appliance to be imported.

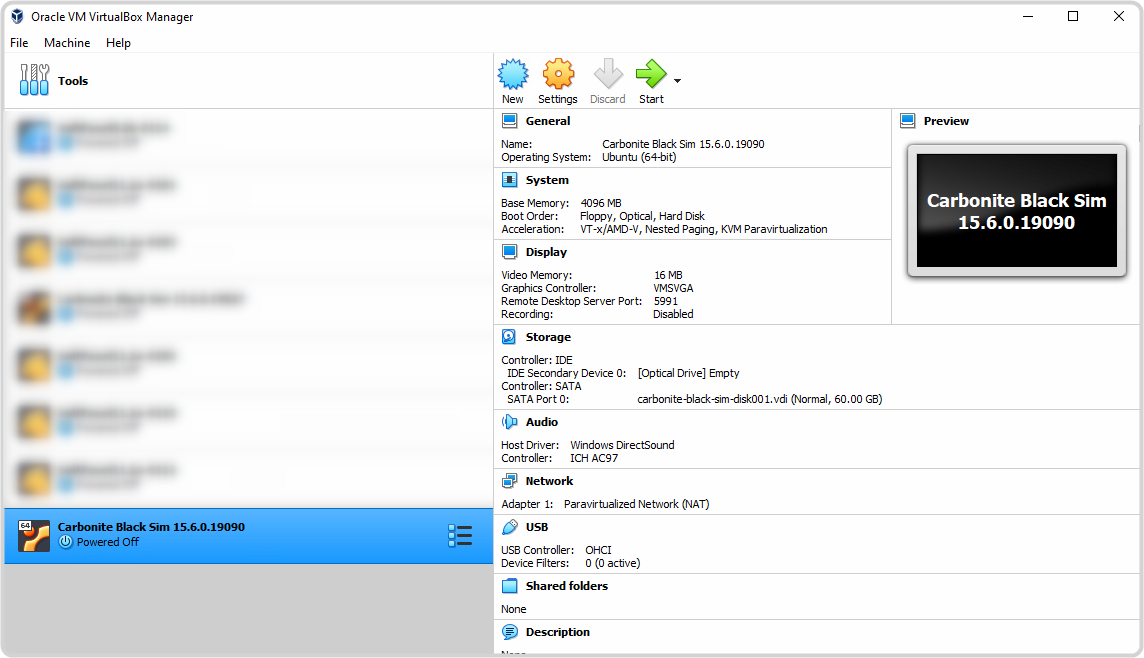

  8. Click on the Carbonite Black Sim in the Oracle VM VirtualBox Manager.


  9. Click Settings, on the right, and then click Network on the Settings dialog.
    Note: You may see an Invalid settings detected for Remote Display at the bottom of the dialog. Click Display > Remote Display and clear Enable Server.

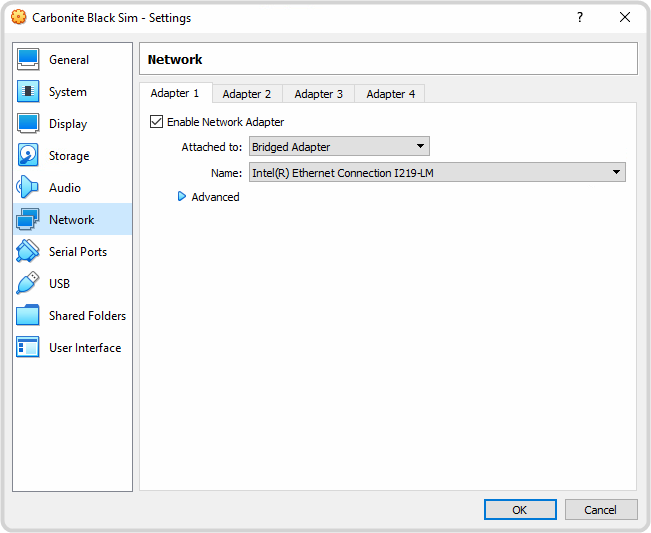

  10. Click Adapter 1 and on the Attached to list select Bridged Adapter. You can leave the Name setting as shown.
  11. Click OK.
