LTC Port

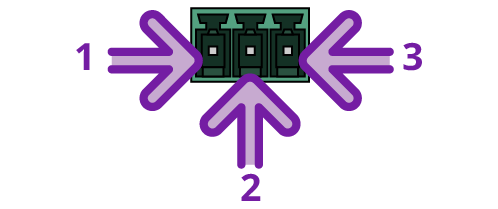

The LTC port on the back of the frame supports a single LTC connection.



Table 1. LTC Port Pinouts
Pin Unbalanced Balanced
1 Signal Ground/Shield/Common
2 Ground/Shield/Common Positive (+)
3 -- Negative (-)
