Re-entry Timing

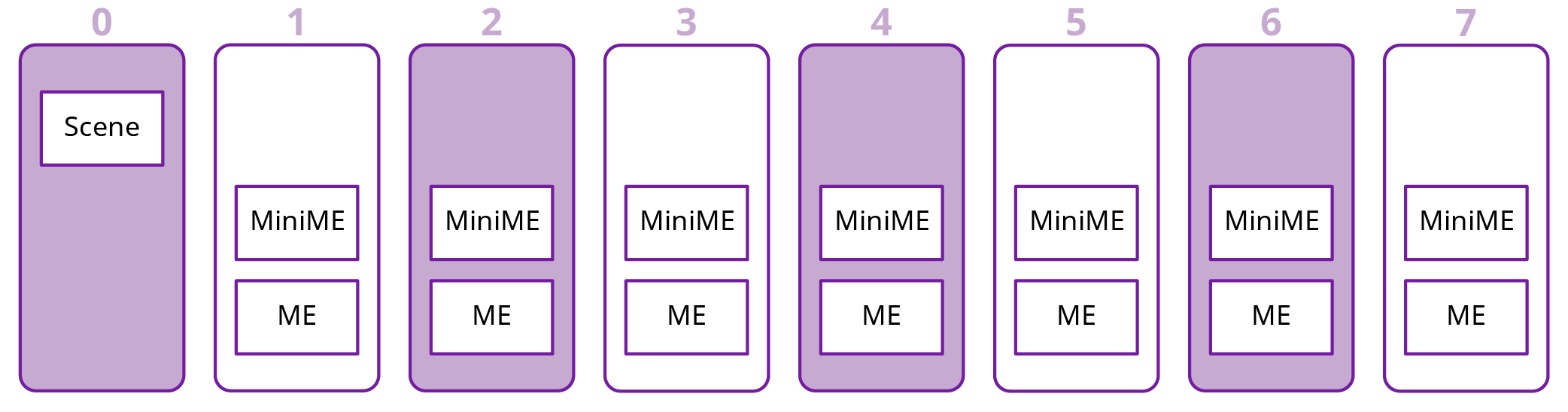

There are 8 timing zones that are used for video re-entry. Any ME or MiniME™ can occupy any of the timing zones allowing for ME and MiniME™ to be re-entered into each other in any order. Re-entering an ME or MiniME™ into itself is not allowed.

Note:

UltraScene scenes exist in a separate timing zone and can only be re-entered into an ME or MiniME™. You cannot re-enter a scene into another scene or re-enter an ME or MiniME™ into a scene.
