To Set Up a MultiViewer System Clock

The clock can show the current system time in 12-hour or 24-hour format (hh:mm:ss).

Click Navigation Menu > Configuration > MultiViewers and select the MultiViewer that you want to apply the clock overlay to.
Click Clock > System.
Click a Time Display button to set how the time is displayed.
- 24 hr — time is displayed in 24-hour format.
- 12 hr — time is displayed in 12-hour format without am/pm.
- 12 hr AM/PM — time is displayed in 12-hour format with am/pm.
Click the Position tab.
Use the X Position, Y Position, and Size sliders to position the clock and change the size.

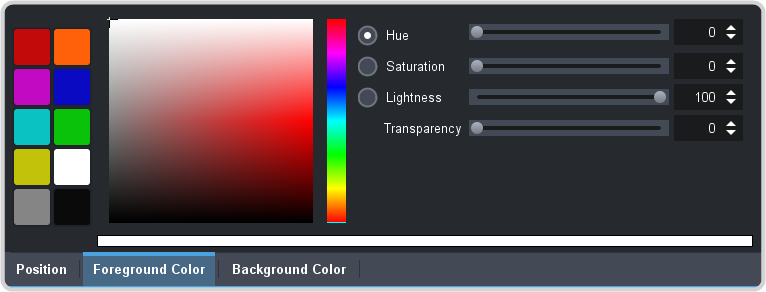

Click the Foreground Color tab and select the color and transparency you want to use for the text of the clock.
Click the Background Color tab and select the color and transparency you want to use for the background of the clock.
