Re-entry Timing

There are 8 timing zones in UHDTV1 and 1080 HD that are used for video re-entry. Any ME or MiniME™ can occupy any of the timing zones allowing for ME and MiniME™ to be re-entered into each other in any order. Re-entering an ME or MiniME™ into itself is not allowed.

Note: MaxScene scenes exist in a separate timing zone and can only be re-entered into an ME or MiniME™. You cannot re-enter a scene into another scene or re-enter an ME or MiniME™ into a scene.

Figure 1. R-entry Timing Zones in UHDTV1 and 1080 HD

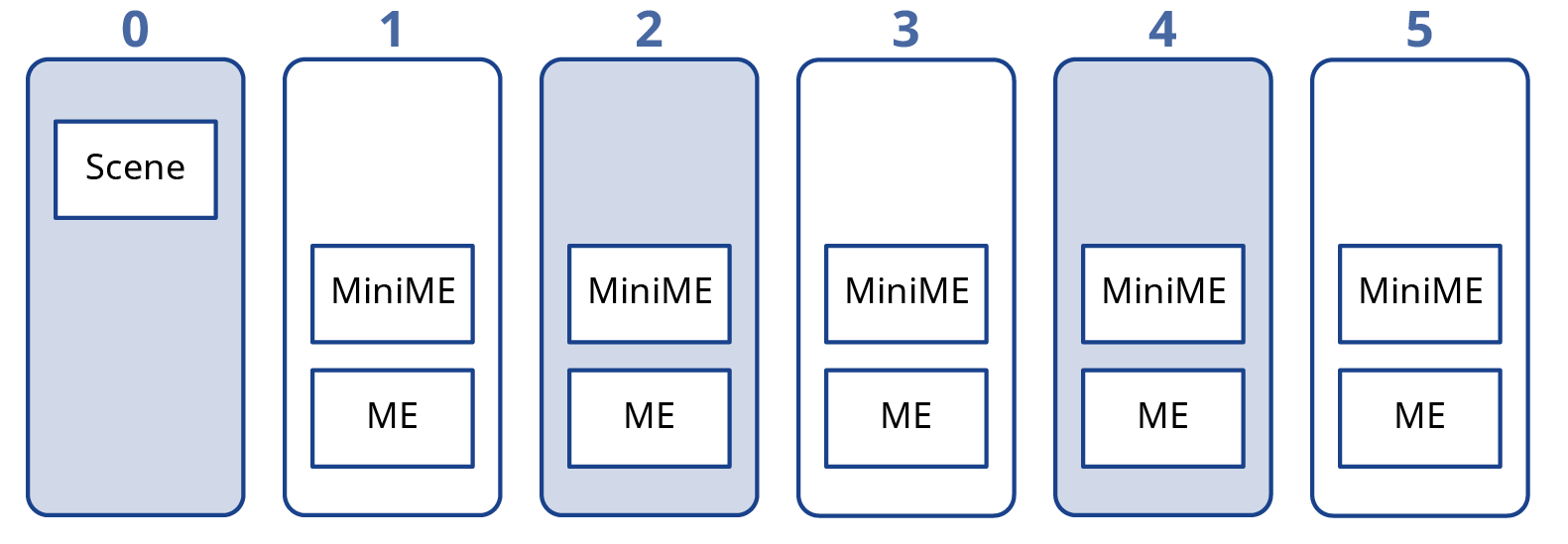

When the switcher is operating in a 720p video format, the system is limited to 5 timing zones. All the same timing zone restriction apply.

Figure 2. R-entry Timing Zones in 720p HD
