Switcher Status

The status menus show information for various components of the frame.

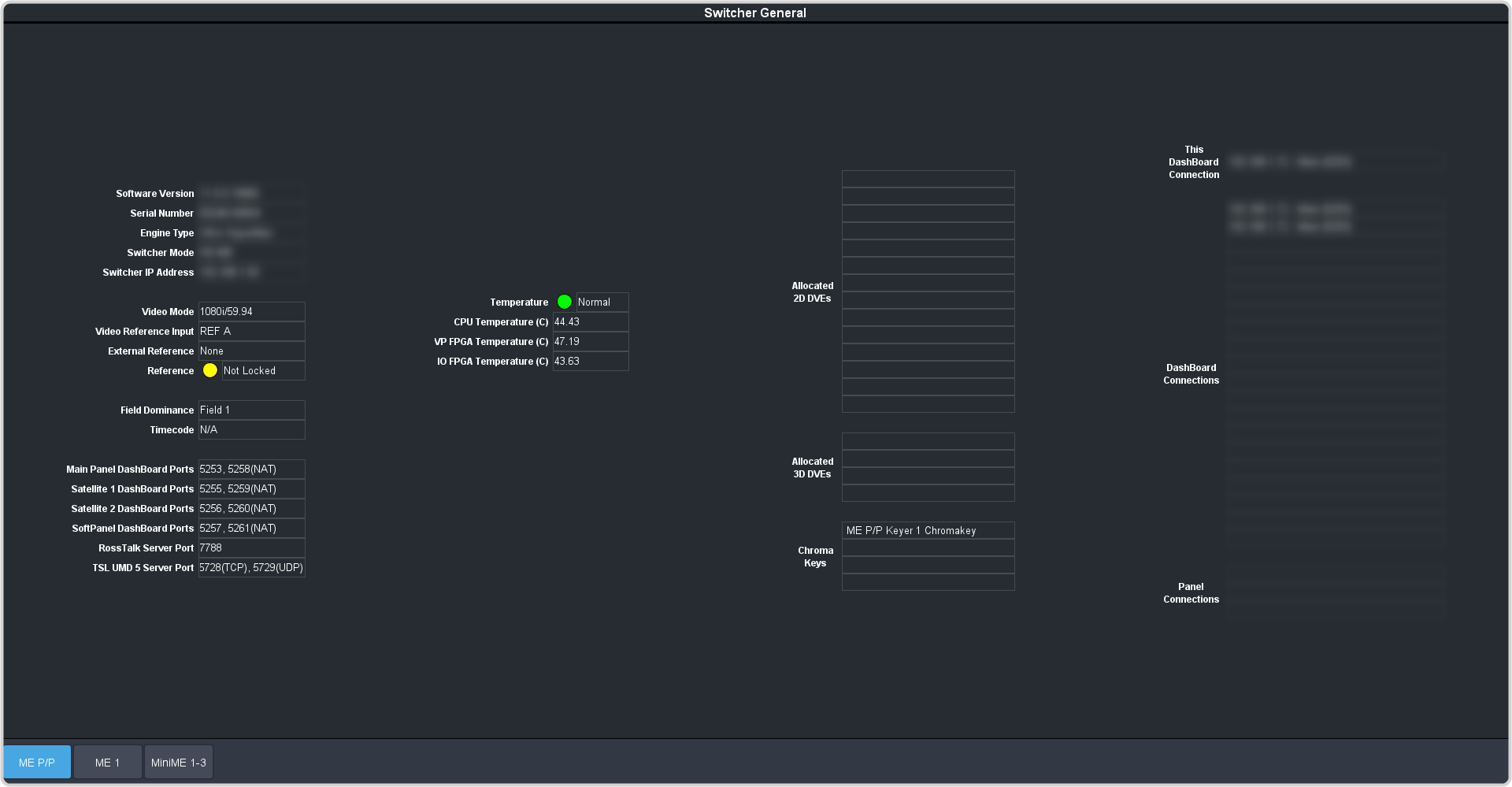

General

  • Click Navigation Menu > Status / Power > General
    Note: The ME P/P selection provides the primary status of the switcher and available resources. The other tabs provide diagnostic information on the other SDPE blades assigned to the switcher.


  • Software Version — the current version of the software running on the switcher.
  • Serial Number — the serial number of the SDPE blade.
  • Engine Type — the model of switcher.
  • Switcher Mode — the current mode the switcher is operating in.
  • Switcher IP Address — the IP address of the SDPE blade assigned as ME P/P.
  • Video Mode — the video format that the switcher is operating in.
  • External Reference — the video format of the external reference, if connected.
  • Reference — status of whether the switcher has locked to the reference format.
  • Field Dominance — the switching field.
  • Timecode — the current timecode being received by the switcher.
  • Main Panel DashBoard Port — the local and NAT network port that the switcher is listening on for the main panel.
  • Satellite 1 DashBoard Port — the local and NAT network port that the switcher is listening on for the satellite 1 panel.
  • Satellite 2 DashBoard Port — the local and NAT network port that the switcher is listening on for the satellite 2 panel.
  • SoftPanel DashBoard Port — the local and NAT network port that the switcher is listening on for the SoftPanel.
  • RossTalk Server Port — the network port that the switcher is listening on for RossTalk commands.
    Note: You can disable RossTalk control from the Global page (Click Navigation Menu > Configuration > System > Global). Click Disable for RossTalk.
  • TSL UMD 5 Server Port — the network port that the switcher is listening on for TSL 5 UMD commands.
  • Temperature — status of the ambient temperature in the frame.
  • CPU Temperature (C) — the temperature of the frame CPU in degrees Celsius.
  • VP FPGA Temperature (C) — the temperature of the frame video processor FPGA in degrees Celsius.
  • IO FPGA Temperature (C) — the temperature of the frame I/O processor FPGA in degrees Celsius.
  • Allocated 2D DVEs — where 2D DVE channels are allocated in the switcher.
  • Allocated 3D DVEs — where 3D DVE channels are allocated in the switcher.
  • Allocated Chroma Keys — where the chroma keys are allocated in the switcher.
  • This DashBoard Connection — the IP address of the DashBoard system you are currently using to connect to the switcher. The text after the IP address indicates whether the connection is as Main, Satellite, or SoftPanel and the port being used.
  • DashBoard Connections — the IP addresses of all the DashBoard connections to the switcher, including panels. The text after the IP address indicates whether the connection is as Main, Satellite, or SoftPanel and the port being used. Refer to MultiPanel for more information.
    Note: The frame supports a maximum of 20 DashBoard connections at any one time. If there are already the maximum number of connections to a frame you will not be able to connect to it.
  • Panel Connections — The role, IP address, and model of all the physical panels connected to the switcher.

Versions

  • Click Navigation Menu > Status / Power > Versions


Software Versions:

  • Software — the current version of the software running on the switcher.
  • CPLD — the current version of the firmware on the CPLD logic device.
  • VP FPGA — the current version of software running on the video processor FPGA.
  • I/O FPGA — the current version of software running on the I/O processor FPGA.

Hardware Revisions:

  • Hardware — the hardware revision of the frame.

Serial Numbers:

  • Baseboard — serial number of the baseboard in slot 1.
