To Change the CPU IP Address

Change the IP address of the Frame CPU.

Open a web browser and navigate to the IP address of the CPU. You are prompted to enter a user name and password. The defaults are user and password. The default IP address is 192.168.0.125.

Note:
This is the IP address of the CPU, not the SDPE blades or Ultrix™.

Tip:

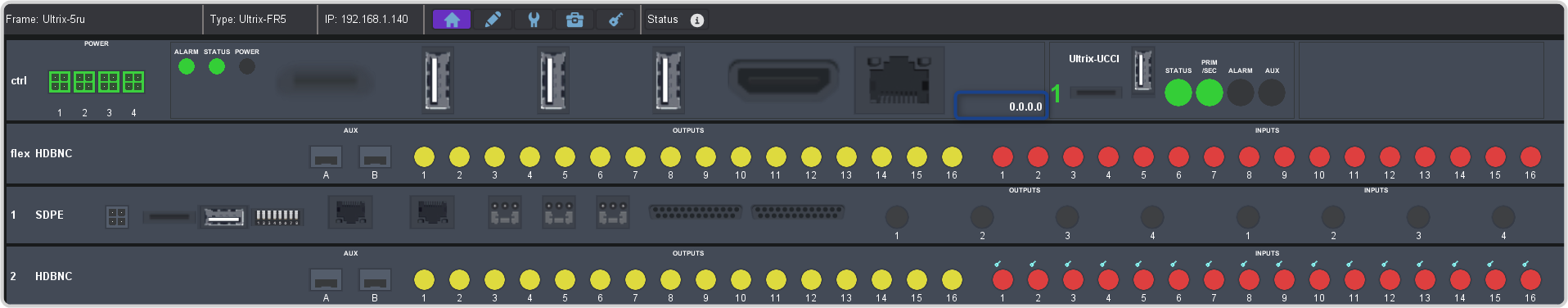

If you do not know the IP address of the CPU, you can find it in DashBoard under the Ultrix™ node (Devices > Controllers/Matrices > Ultrix) on the image of the Frame CPU.
Click Other... > Network.

This page allows you to change the network configuration of the network ports, as well as enter the current IP Address of the main panel, and satellite panels.
In the LAN1 section, enter the IP Address and Subnet Mask for the switcher.

Note:
You cannot set the switcher to an IP Address in the range of 192.168.12.xx. This is used internally and will cause interference. The Subnet Mask should be set to 255.255.255.0.
Enter the Default Gateway for the frame.

Important:
You must enter a Gateway address for the switcher to communicate properly with the other components of the system.
Click Change and Reboot.
