To Assign Audio to an AES Output

Assign an audio source to one of the AES outputs.

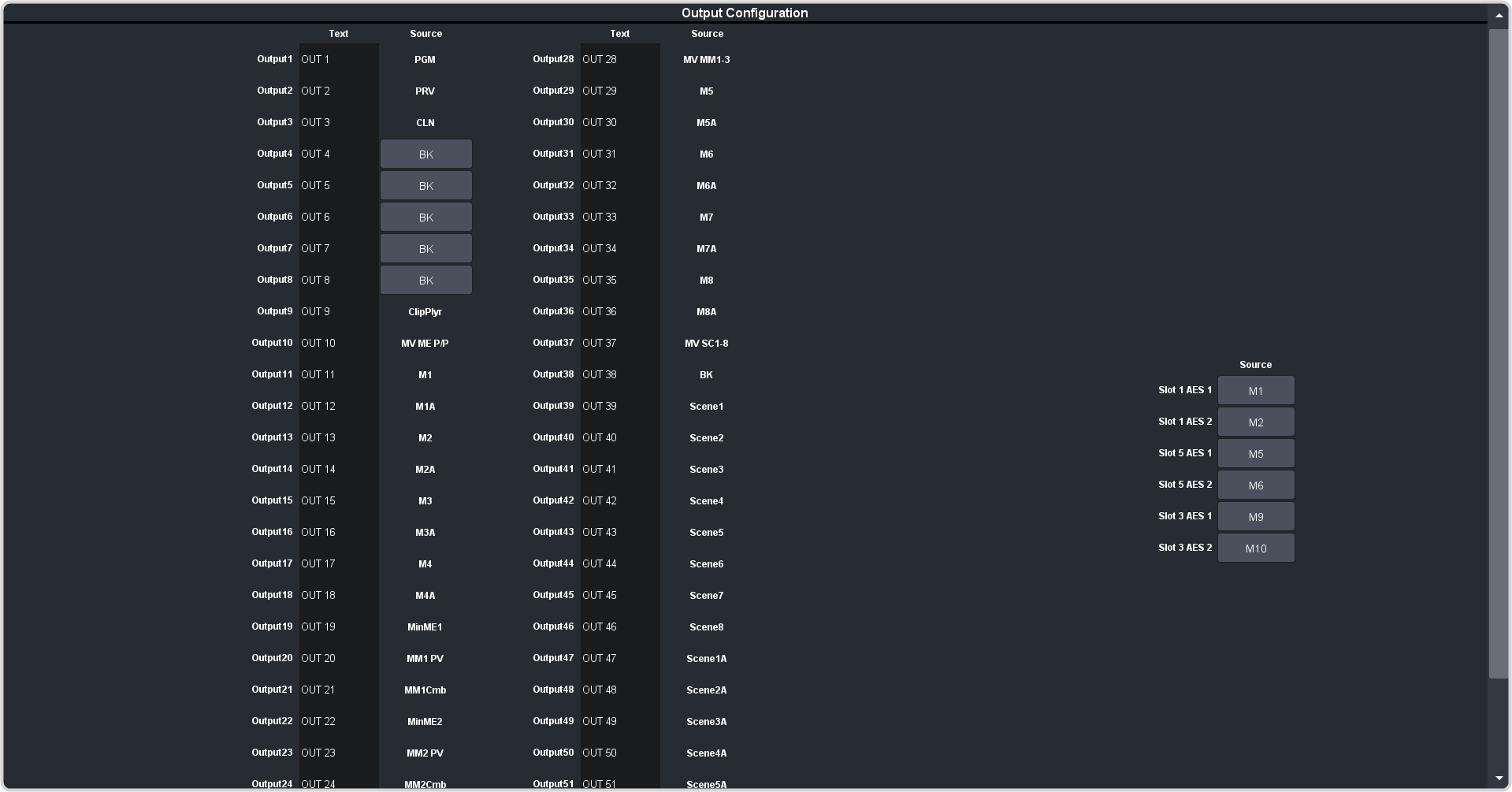

Click Navigation Menu > Configuration > Outputs.
Click the Source button for the Slot x AES y output you want to assign an audio source to.
Click the audio source to want to assign to the AES output.

Note: The audio sources that are available to an AES output depend on the role the SDPE blade has been assigned. Only audio from the first 2 Media-Store channels on an SDPE blade can be assigned to an AES output.
- NoSrc — no audio source is assigned to the AES output.
- MX — the audio from Media-Store X is assigned to the AES output.
- MEXMW — the audio from the MediaWipe on ME X is assigned to the AES output.
- ClipPlyr — clip player audio.
