To Set Up a Dissolve

A dissolve transition requires that you set a background and key transition rate for the auto transition. A fader transition does not use the transition rate.

Click Navigation Menu > Live Assist > MEs and select the ME that you want to perform the transition on.

Tip:
You can use the same procedure for a MiniME™.

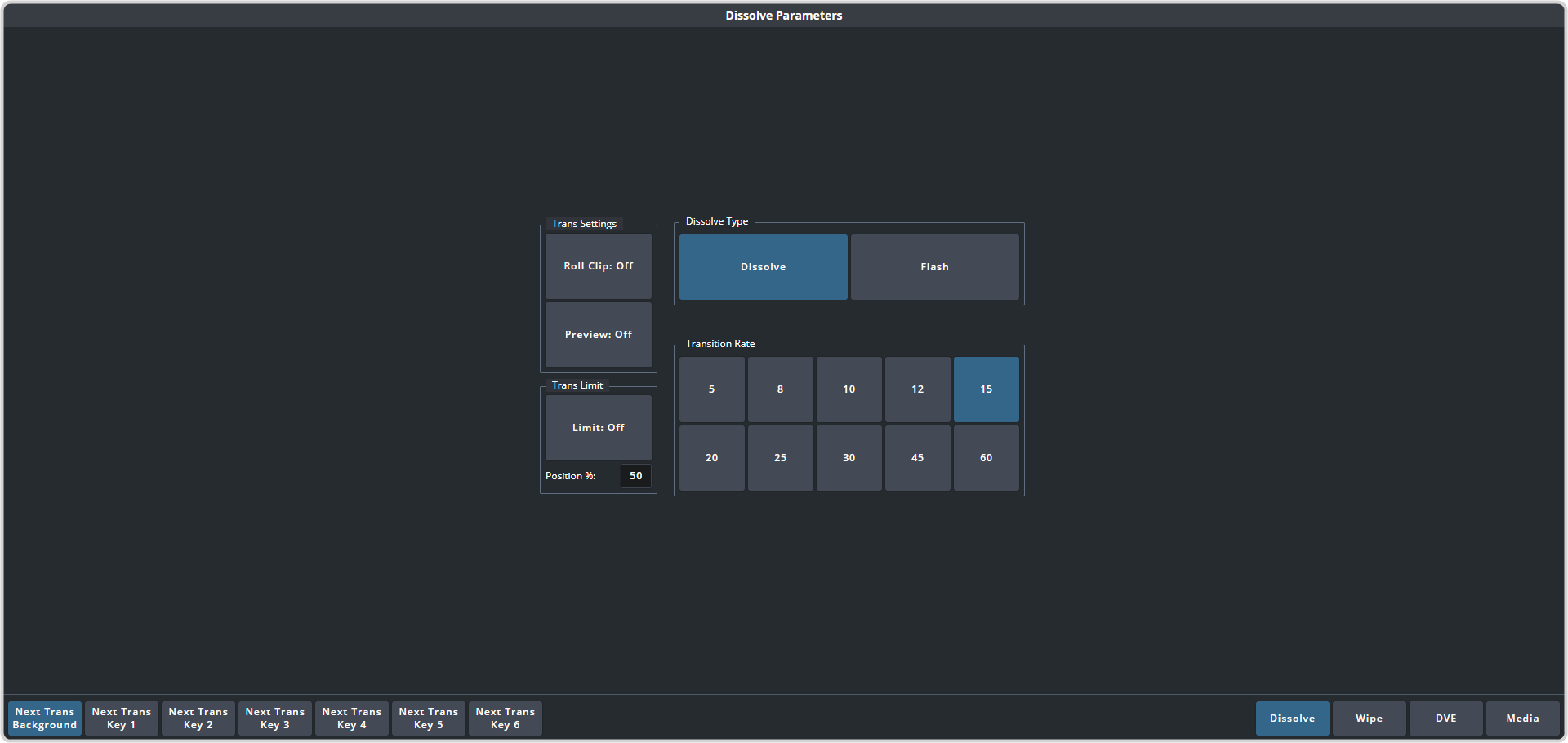

Click Trans > Dissolve, or press DISS in the Transition area on the control panel.
Click Dissolve.
