To Configure the Key Combiner

Set how the DVE channel interact with each other.

Click Navigation Menu > Live Assist > MEs and select the ME and key that you want to set up.
Click Channel 1 Video and select the video signal you want to use for the key.
Click 2D DVE or 3D DVE, depending on the type of key you want to use.

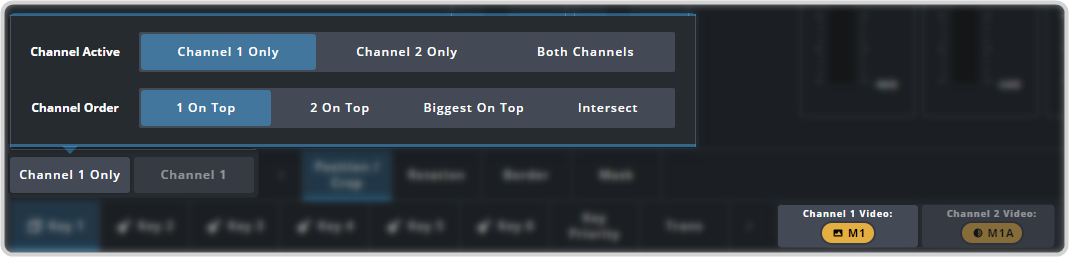

Click Channel 1 Only. If the key combiner has already been set up, this button shows the current state of the combiner.
Click a Channel Active button to select which channel you want to be active.
- Channel 1 Only — channel 1 is active in the keyer.
- Channel 2 Only — channel 2 is active in the keyer.
- Both Channels — both channel 1 and 2 are active in the keyer.
Tip: Click Channel 1 Video or Channel 2 Video to select the video source that is used for the selected channel.
Click a Channel Order button to select which order you want the channels to appear in the keyer.
- 1 On Top — channel 1 always appears over top of channel 2.
- 2 On Top — channel 2 always appears over top of channel 1.
- Biggest On Top — the largest channel (Size) always appears on top.
- Intersecting (3D Only) — the channel that is closer to the origin point on the z-axis is on top.
Tip: If the channels are rotated in the X or Y axis, the channels can intersect and partially cover each other as they move through the Z-axis.
If Both Channels is active, click the Channel x button and select the channel (Channel 1 or Channel 2) that you want to control.
