To Copy a Key

Copy the contents of a keyer to another.

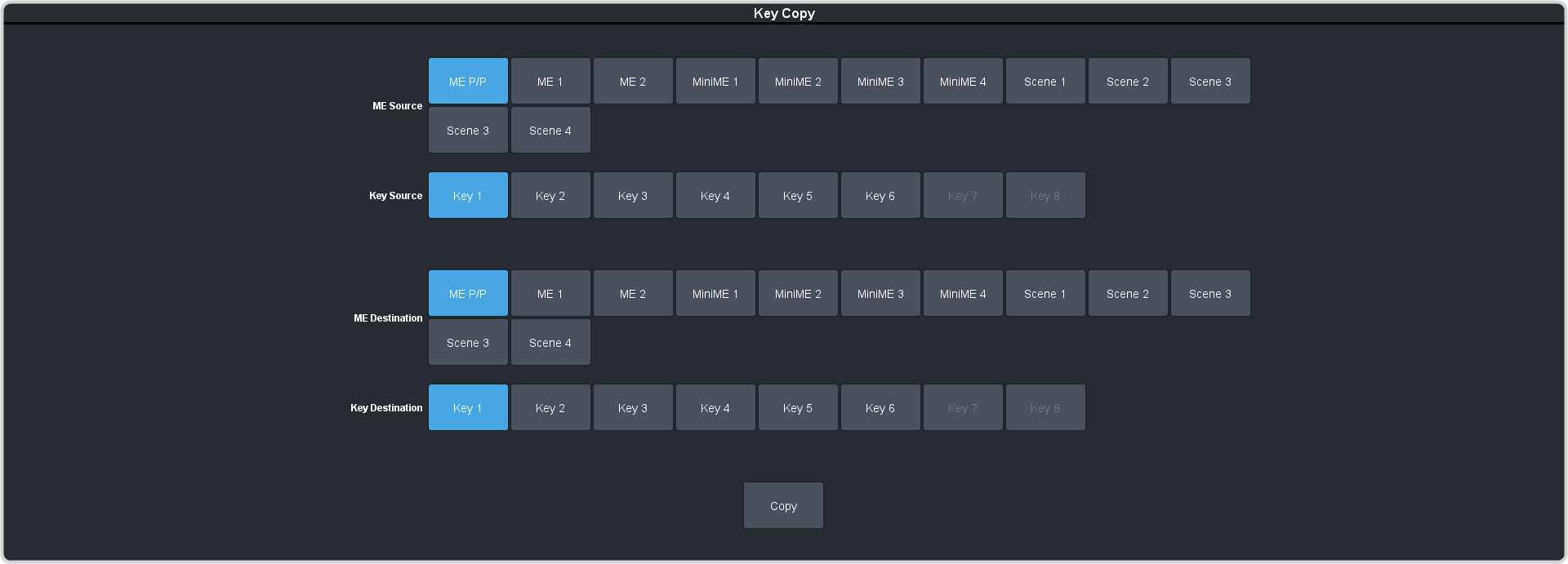

Click Navigation Menu > Live Assist > Copy > Key Copy.
Click an ME Destination and Key Destination button to select the destination that you want to copy to.
Click an ME Source and Key Source button to select the source you want to copy.
Click Copy.
