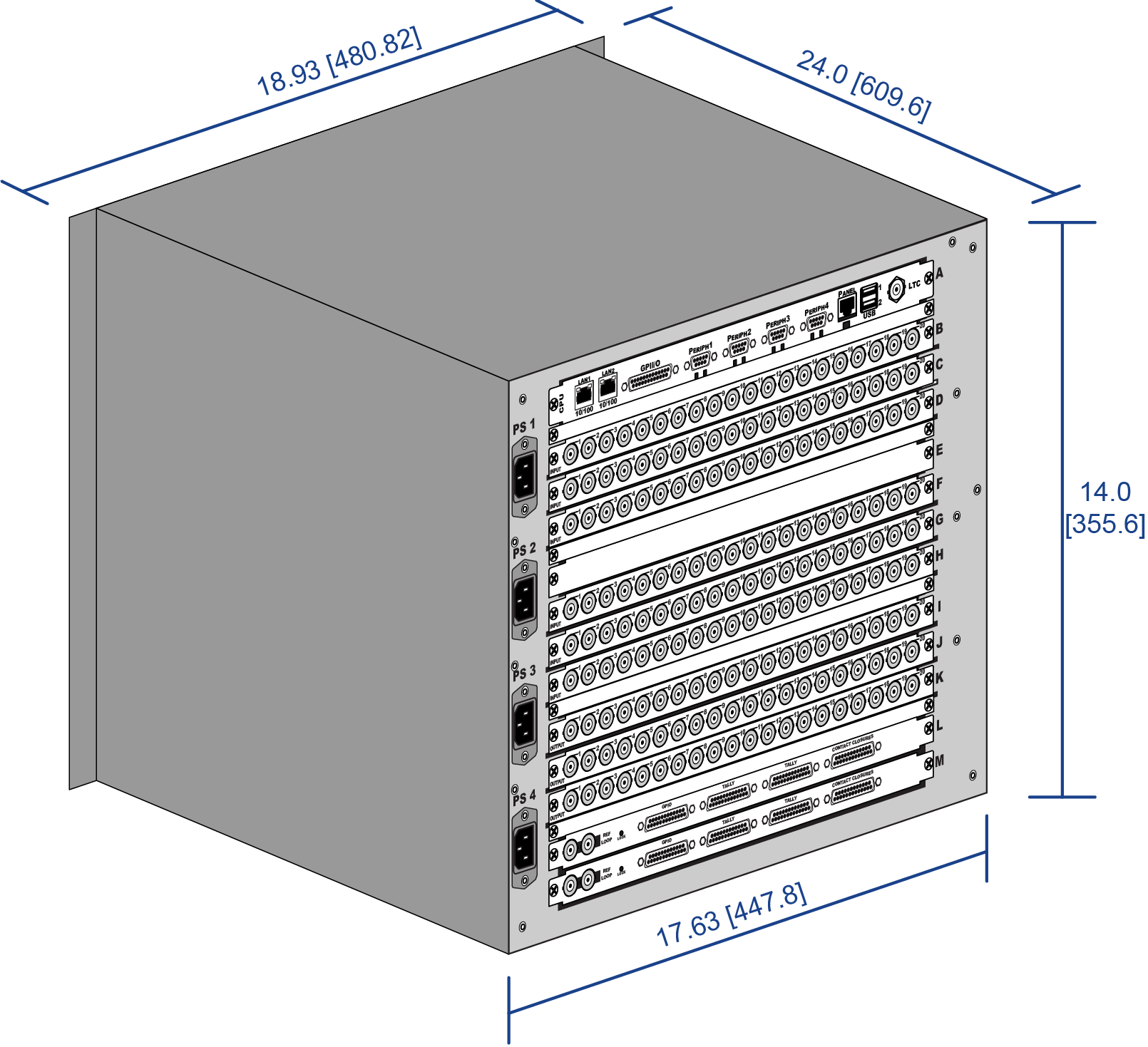

Frame Dimensions

These dimensions are provided as a guide only. Contact Ross Video Technical Support for scale CAD drawings of the control panels and frames. The standard and Double-Down control panels are the same size.

Dimensions are in inches with metric dimensions shown in brackets [mm].
